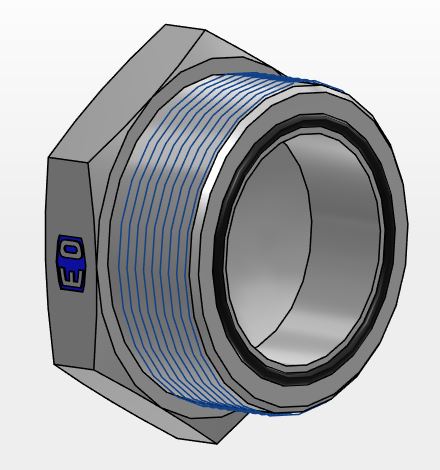

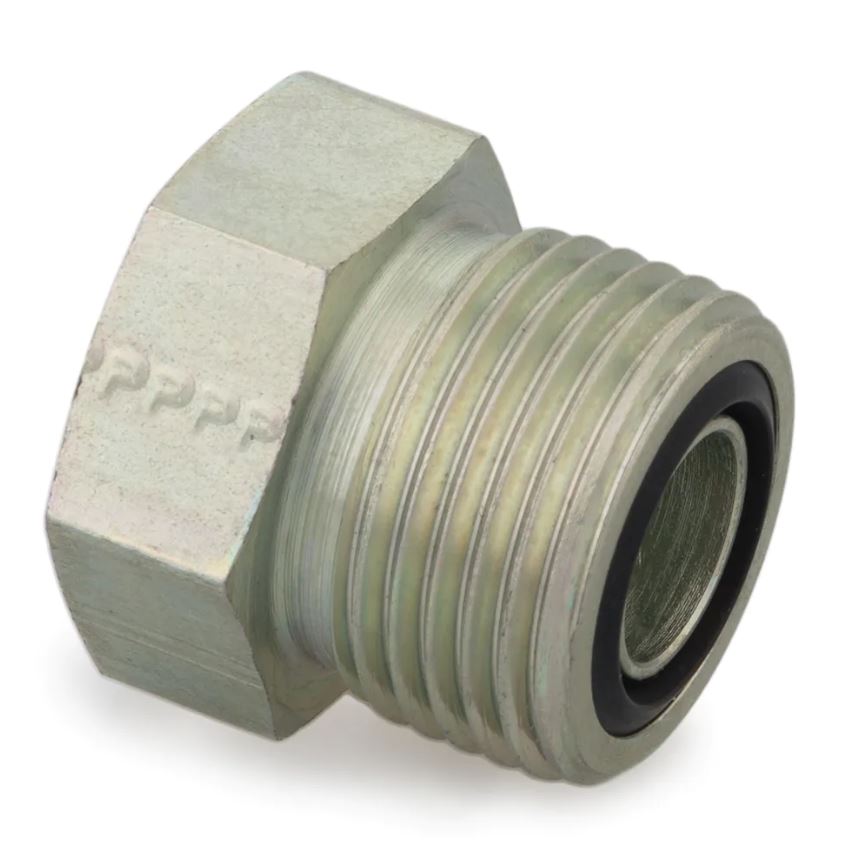

Prop - O-Lok® ORFS Rør Ende Prop
SAE 520109
Fitting ends
# | Endetype | Endeform | Gevind | Tætning |
---|---|---|---|---|
1 | O-Lok / ORFS | Han | UNF | Flat Seat |
Fitting data
Form | Prop |
---|
Materialer | Rustfrit Stål, Stål |
---|---|
Størrelser (mm) | 6 - 50 mm |
Størrelser (tommer) | 1/4" inches - 2" inches |
Samlingskombination | Plugs and Caps |
Produktklassifisering | Hydraulik |
Produktkategori | Fittings |
Produktgruppe | Hydraulik Fittings |
Produktprogram | ORFS / OLok / Flatface |
Produktunderprogram | Propper og muffer |
Varenummer | Leverandøres varenumre | Alternative varenumre |
---|---|---|
7290565000 | 4 PNLO-S | A9B00038482 |
7290565005 | 6PNMLOS | A9B00038516 |
7290565010 | 8PNMLOS | A9B00038454 |
7290565015 | 10 PNLO-S | A9B00038518 |
7290565030 | 16 PNLO-S | A9B00038477 |
H00010543 | 20 PNLO-S | A9B00038520 |
7290565020 | 12 PNLO-S | A9B00038458 |
