Nåleventil - 40VM - 2-Vejs Lige

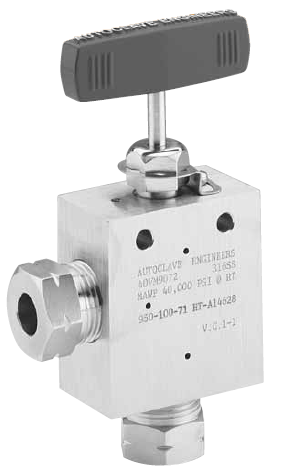

Needle Valve 40VM

Hymatik varenr.	Leverandør varenr.	Oprindelsesland	TariffNumber	Vægt	A Inch	A (mm)	B Inch	B (mm)	Outside Diameter Tube Inch	Outside Diameter Tube (mm)	C Inch	C (mm)	D Inch	D (mm)	E Inch	E (mm)	F Inch	F (mm)	G Inch	G (mm)	Block Thickness Inch	Block Thickness (mm)	Stem Type	Orifice Diameter Inch	Orifice Diameter (mm)	D1Inch	D1 (mm)	G1 Inch	G1 (mm)	H Inch	H (mm)	M Inch	M (mm)	N Inch	N (mm)	Rated CV	Pressure Rating Psi Room Temperature	Pressure Rating Bar Room Temperature	Enhedspris	Lagerstatus	Sort Order
H00058777	40VM9071	IE, Irland	84819000	0,3, KG	2.62	66.55	1.31	33.27	9/16	14.30	0.72	18.29	1.75	44.45	2.50	63.50	3	76.20	1	25.40	1.50	38.10	VEE	0.11	2.77	1.31	33.27	0.28	7.11	5.06	128.52	0.69	17.53	0.38	9.65	0.28	40000	2760	2489,78 DKK	Ikke på lager	2147483647
H00058778	40VM9081	US, USA	7307291090	1,1, KG	2.62	66.55	1.31	33.27	9/16	14.30	0.72	18.29	1.75	44.45	2.50	63.50	3	76.20	1	25.40	1.50	38.10	REG	0.11	2.77	1.31	33.27	0.28	7.11	5.06	128.52	0.69	17.53	0.38	9.65	0.28	40000	2760		Ikke på lager	2147483647
