Magnet-/solenoidstyret Retningsreguleringsventil

Datasheets
2345

Viking inline ventil. Xtreme duty spool


Produktklassifisering Pneumatik
Produktkategori Ventiler
Produktgruppe Pneumatik / Luft Ventiler
Produktprogram Retningsventil

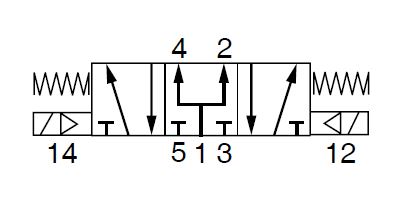

Produktunderprogram Retningsventil 5/3
Vis i fuld skærm
Hymatik varenr. Leverandør varenr.
Port Størrelse
Gevindtype
ChangeoverTime(ms)
Valve Type Function
PilotMainActuatorReturn
Solenoid Exhaust
Solenoid enclosure / Lead length
Overrides
Ventil Tilslutnings Størrelse
Oprindelsesland
TariffNumber
Vægt
Enhedspris
Lagerstatus
Favorit Sort Order
H00090670 P2LAX711EEHDDB49 G1/8” BSPP 18/50 5/3 valve pressurised centre Solenoid operated valve Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,6335, KG 1943,70 DKK Ikke på lager
2147483647
H00090671 P2LBX712EEHDDB49 G1/4” BSPP 25/65 5/3 valve pressurised centre Solenoid operated valve Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 1/4BsppFem, 1/4" BSPP Hun Ikke på lager 2147483647
H00090672 P2LCX713EEHDDB49 G3/8” BSPP 30/90 5/3 valve pressurised centre Solenoid operated valve Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 3/8BsppFem, 3/8" BSPP Hun Ikke på lager 2147483647
H00090673 P2LDX714EEHDDB49 G1/2” BSPP 30/95 5/3 valve pressurised centre Solenoid operated valve Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 1/2BsppFem, 1/2" BSPP Hun Ikke på lager 2147483647
H00090698 P2LAX711EEHDDN G1/8” BSPP 18/50 5/3 valve pressurised centre Solenoid operated valve Vented 22mm Solenoid pilot less coil Extended non-locking 1/8BsppFem, 1/8" BSPP Hun Ikke på lager 2147483647
H00090699 P2LBX712EEHDDN G1/4” BSPP 25/65 5/3 valve pressurised centre Solenoid operated valve Vented 22mm Solenoid pilot less coil Extended non-locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,6681, KG 1741,98 DKK Ikke på lager
2147483647
H00090700 P2LCX713EEHDDN G3/8” BSPP 30/90 5/3 valve pressurised centre Solenoid operated valve Vented 22mm Solenoid pilot less coil Extended non-locking 3/8BsppFem, 3/8" BSPP Hun Ikke på lager 2147483647
H00090701 P2LDX714EEHDDN G1/2” BSPP 30/95 5/3 valve pressurised centre Solenoid operated valve Vented 22mm Solenoid pilot less coil Extended non-locking 1/2BsppFem, 1/2" BSPP Hun Ikke på lager 2147483647
H00090711 P2LBXN12EEHDDN G1/4” BSPP 13/13 5/2 valve Solenoid operated valve Vented 22mm Solenoid pilot less coil Extended non-locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,5785, KG 1450,52 DKK Ikke på lager
2147483647
H00090712 P2LCXN13EEHDDN G3/8” BSPP 18/18 5/2 valve Solenoid operated valve Vented 22mm Solenoid pilot less coil Extended non-locking 3/8BsppFem, 3/8" BSPP Hun Ikke på lager 2147483647
H00090713 P2LDXN14EEHDDN G1/2” BSPP 18/18 5/2 valve Solenoid operated valve Vented 22mm Solenoid pilot less coil Extended non-locking 1/2BsppFem, 1/2" BSPP Hun Ikke på lager 2147483647
