Magnet-/solenoidstyret Retningsreguleringsventil

Datasheets
2345

Viking inline ventil. Xtreme duty spool


Produktklassifisering Pneumatik
Produktkategori Ventiler
Produktgruppe Pneumatik / Luft Ventiler
Produktprogram Retningsventil
Produktunderprogram Retningsventil 5/3
Vis i fuld skærm
Hymatik varenr. Leverandør varenr.
Port Størrelse
Gevindtype
ChangeoverTime(ms)
Valve Type Function
PilotMainActuatorReturn
Solenoid Exhaust
Solenoid enclosure / Lead length
Overrides
Ventil Tilslutnings Størrelse
Oprindelsesland
TariffNumber
Vægt
Enhedspris
Lagerstatus
Favorit Sort Order

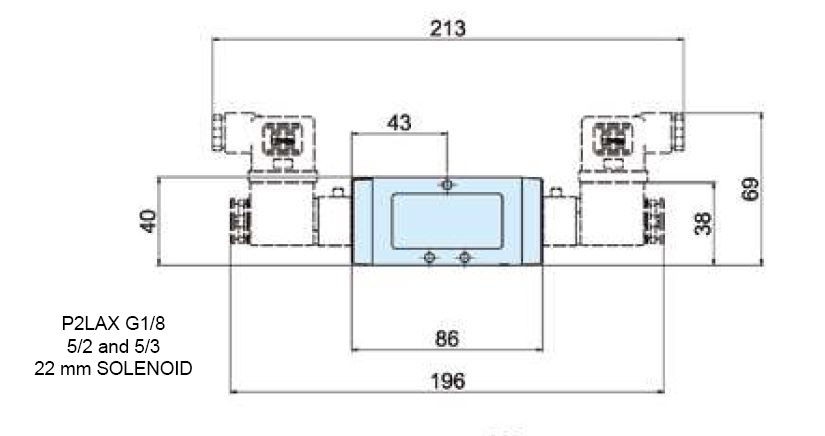

H00090694 P2LAX811EEHDDN G1/8” BSPP 18/50 5/3 valve vented centre Solenoid operated valve Vented 22mm Solenoid pilot less coil Extended non-locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,5282, KG 1670,97 DKK Ikke på lager
2147483647

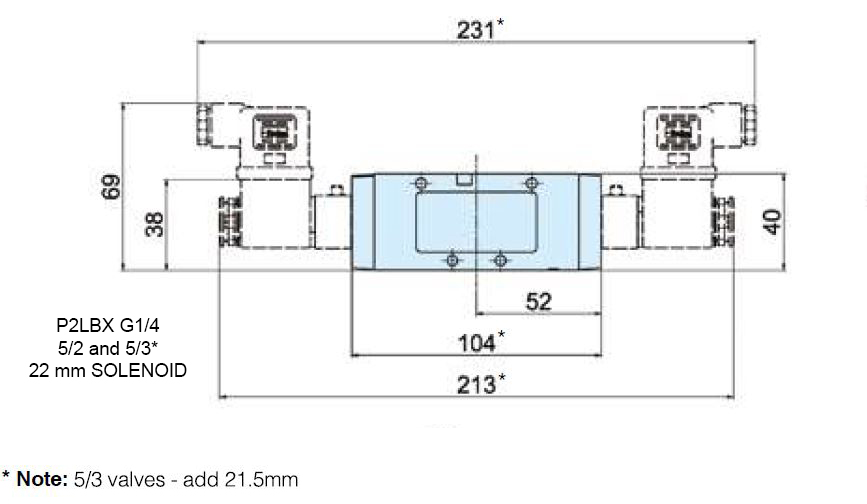

H00090695 P2LBX812EEHDDN G1/4” BSPP 25/65 5/3 valve vented centre Solenoid operated valve Vented 22mm Solenoid pilot less coil Extended non-locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,498, KG 1741,98 DKK Ikke på lager
2147483647

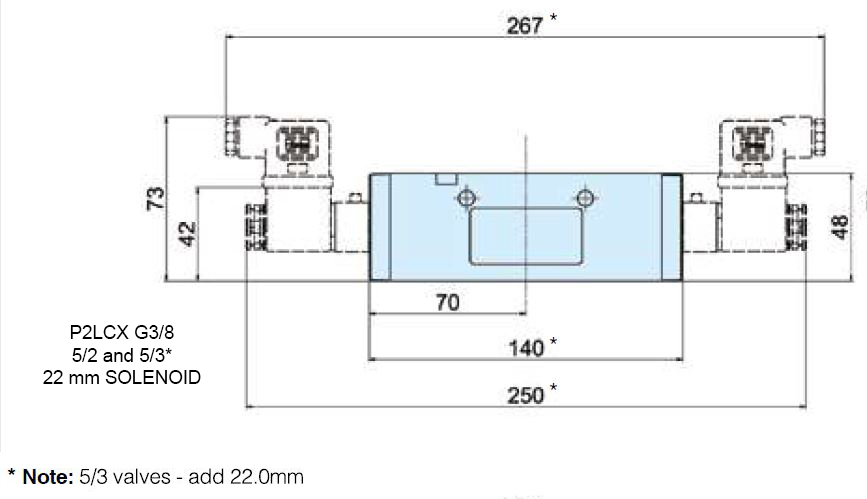

H00090696 P2LCX813EEHDDN G3/8” BSPP 30/90 5/3 valve vented centre Solenoid operated valve Vented 22mm Solenoid pilot less coil Extended non-locking 3/8BsppFem, 3/8" BSPP Hun Ikke på lager 2147483647

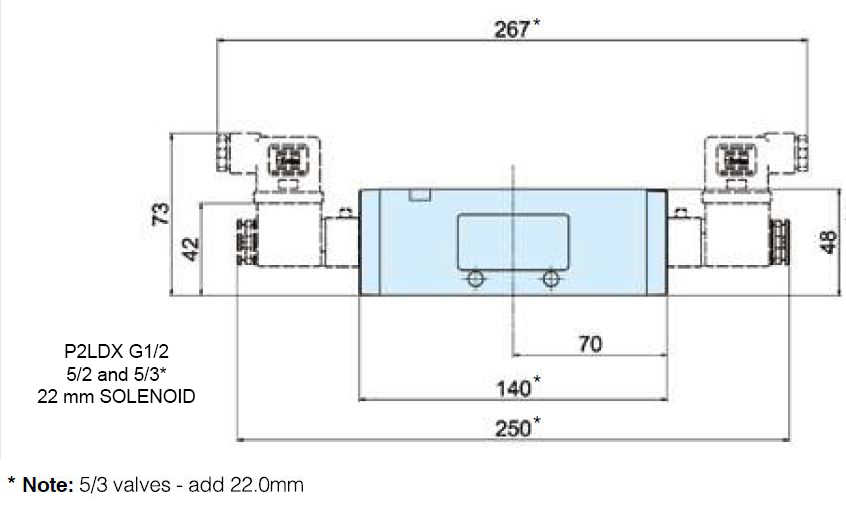

H00090697 P2LDX814EEHDDN G1/2” BSPP 30/95 5/3 valve vented centre Solenoid operated valve Vented 22mm Solenoid pilot less coil Extended non-locking 1/2BsppFem, 1/2" BSPP Hun Ikke på lager 2147483647
H00090666 P2LAX811EEHDDB49 G1/8” BSPP 18/50 5/3 valve vented centre Solenoid operated valve Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,6336, KG 1943,70 DKK Ikke på lager
2147483647
H00090667 P2LBX812EEHDDB49 G1/4” BSPP 25/65 5/3 valve vented centre Solenoid operated valve Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,6035, KG 2015,32 DKK Ikke på lager
2147483647
H00090668 P2LCX813EEHDDB49 G3/8” BSPP 30/90 5/3 valve vented centre Solenoid operated valve Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 3/8BsppFem, 3/8" BSPP Hun FR, Frankrig 84812090 1,0567, KG 2632,26 DKK Ikke på lager
2147483647
H00090669 P2LDX814EEHDDB49 G1/2” BSPP 30/95 5/3 valve vented centre Solenoid operated valve Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 1,0347, KG 2724,77 DKK Ikke på lager
2147483647
