Magnet-/solenoidstyret Retningsreguleringsventil

Datasheets
Datasheet

Viking inline ventil. Xtreme duty spool


Produktklassifisering Pneumatik
Produktkategori Ventiler
Produktgruppe Pneumatik / Luft Ventiler
Produktprogram Retningsventil

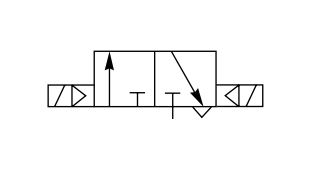

Produktunderprogram Retningsventil 3/2
Vis i fuld skærm
Hymatik varenr. Leverandør varenr.
Port Størrelse
Gevindtype
ChangeoverTime(ms)
Valve Type Function
PilotMainActuatorReturn
Solenoid Exhaust
Solenoid enclosure / Lead length
Overrides
Ventil Tilslutnings Størrelse
Oprindelsesland
TariffNumber
Vægt
Enhedspris
Lagerstatus
Favorit Sort Order

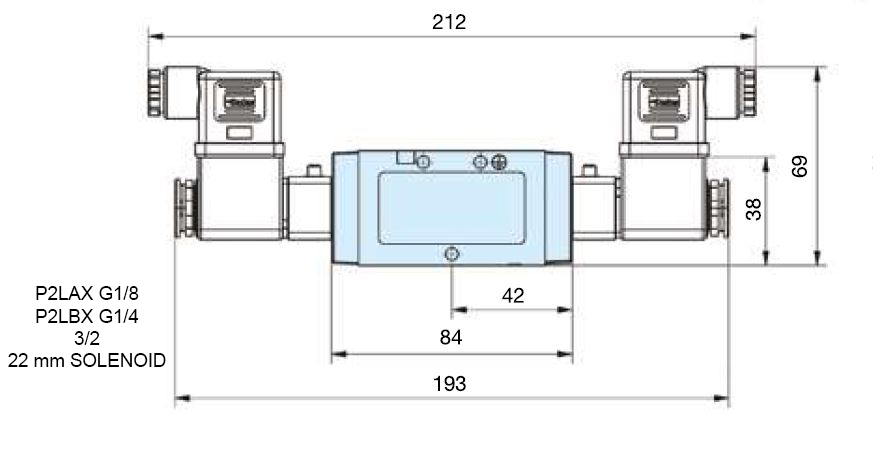

H00090646 P2LAX311EEHDDB49 G1/8” BSPP 11/11 3/2 valve Solenoid operated valve Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,6444, KG 1211,95 DKK Ikke på lager
2147483647
H00090647 P2LBX312EEHDDB49 G1/4” BSPP 13/13 3/2 valve Solenoid operated valve Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,6941, KG 1254,10 DKK Ikke på lager
2147483647

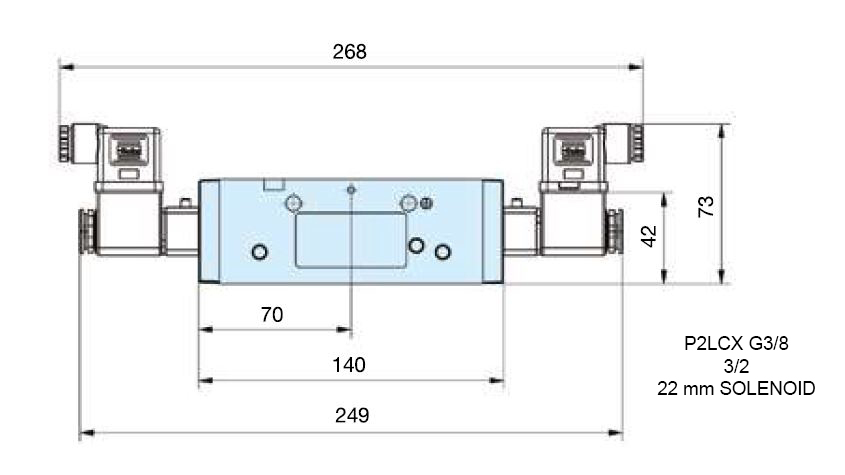

H00090648 P2LCX313EEHDDB49 G3/8” BSPP 18/18 3/2 valve Solenoid operated valve Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 3/8BsppFem, 3/8" BSPP Hun FR, Frankrig 84812090 1,1075, KG 1587,12 DKK Ikke på lager
2147483647

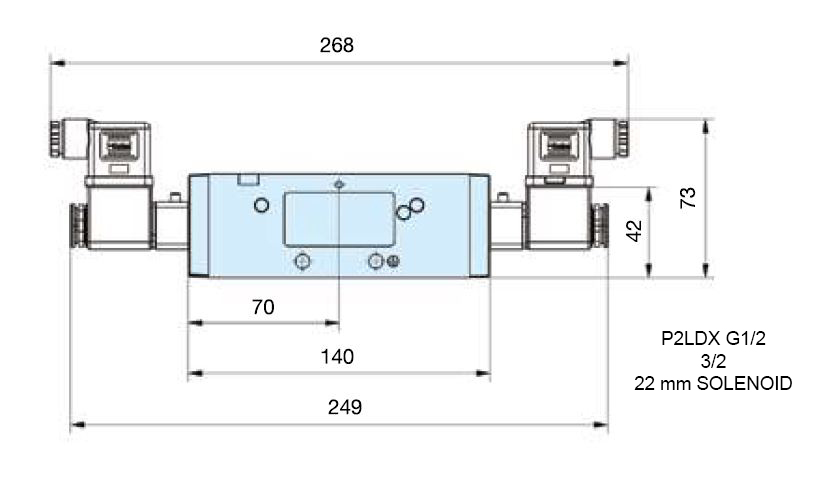

H00090649 P2LDX314EEHDDB49 G1/2” BSPP 18/18 3/2 valve Solenoid operated valve Vented 22mm Solenoid pilot & 22mm coil Industrial Form B Extended non-locking 1/2BsppFem, 1/2" BSPP Hun Ikke på lager 2147483647
H00090674 P2LAX311EEHDDN G1/8” BSPP 11/11 3/2 valve Solenoid operated valve Vented 22mm Solenoid pilot less coil Extended non-locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,5356, KG 1110,35 DKK Ikke på lager
2147483647
H00090675 P2LBX312EEHDDN G1/4” BSPP 13/13 3/2 valve Solenoid operated valve Vented 22mm Solenoid pilot less coil Extended non-locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,5853, KG 1152,72 DKK Ikke på lager
2147483647
H00090676 P2LCX313EEHDDN G3/8” BSPP 18/18 3/2 valve Solenoid operated valve Vented 22mm Solenoid pilot less coil Extended non-locking 3/8BsppFem, 3/8" BSPP Hun Ikke på lager 2147483647
H00090677 P2LDX314EEHDDN G1/2” BSPP 18/18 3/2 valve Solenoid operated valve Vented 22mm Solenoid pilot less coil Extended non-locking 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 1,0114, KG 1503,26 DKK Ikke på lager
2147483647
