Magnet-/solenoidstyret Retningsreguleringsventil

Datasheets
2345

Viking inline ventil. Xtreme duty spool


Produktklassifisering Pneumatik
Produktkategori Ventiler
Produktgruppe Pneumatik / Luft Ventiler
Produktprogram Retningsventil
Produktunderprogram Retningsventil 5/3
Vis i fuld skærm
Hymatik varenr. Leverandør varenr.
Port Størrelse
Gevindtype
ChangeoverTime(ms)
Valve Type Function
PilotMainActuatorReturn
Solenoid Exhaust
Solenoid enclosure / Lead length
Overrides
Ventil Tilslutnings Størrelse
Oprindelsesland
TariffNumber
Vægt
Enhedspris
Lagerstatus
Favorit Sort Order

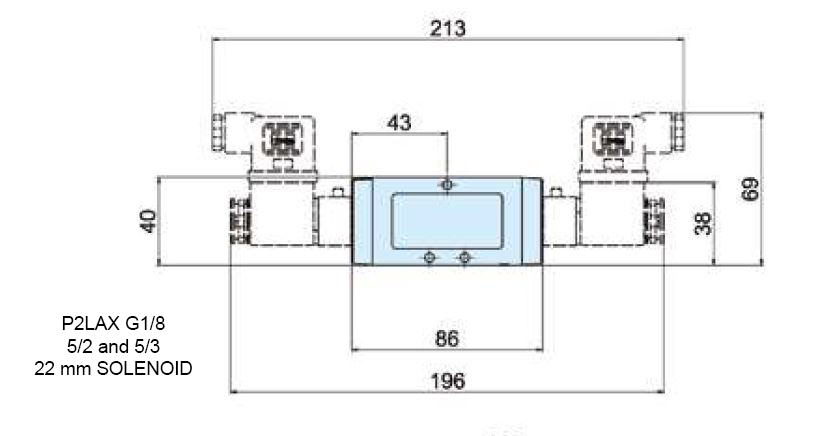

2240060015 P2LAX811EENDDB49 G1/8” BSPP 18/40 5/3 valve vented centre Solenoid operated valve Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,634, KG 1665,37 DKK Ikke på lager
2147483647

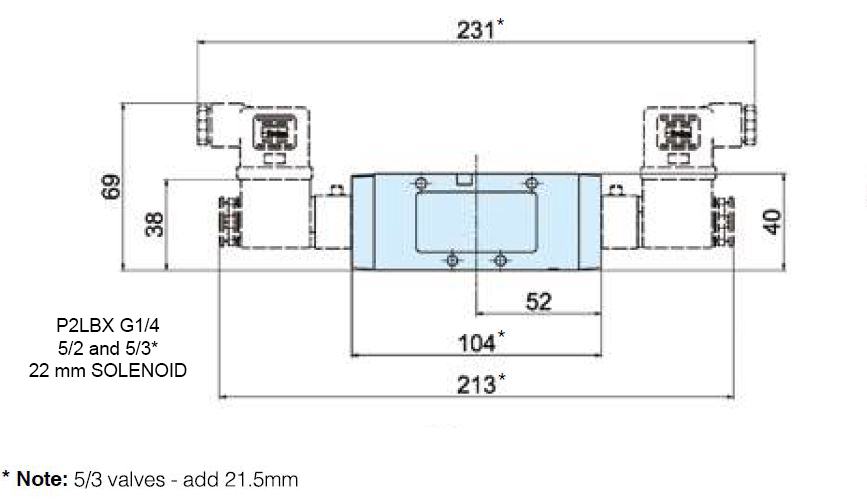

2240110020 P2LBX812EENDDB49 G1/4” BSPP 22/45 5/3 valve vented centre Solenoid operated valve Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,6038, KG 1716,62 DKK Ikke på lager
2147483647

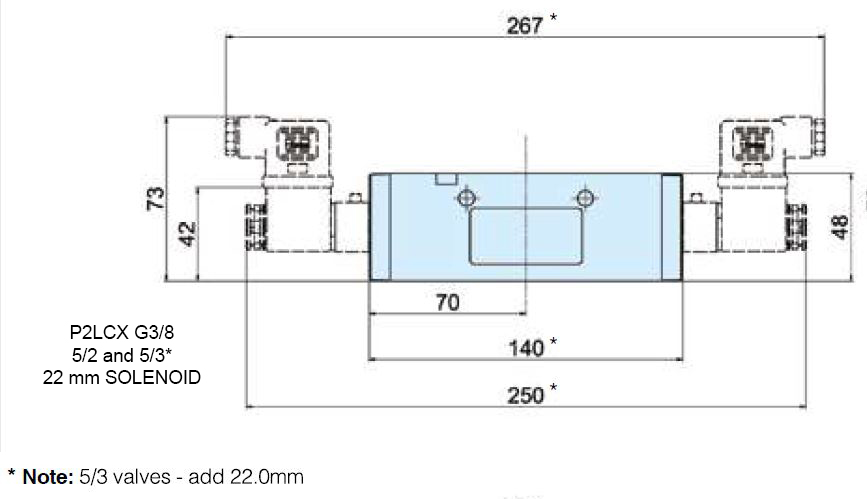

2240160015 P2LCX813EENDDB49 G3/8” BSPP 30/90 5/3 valve vented centre Solenoid operated valve Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 3/8BsppFem, 3/8" BSPP Hun FR, Frankrig 84812090 1,057, KG 2512,53 DKK Ikke på lager
2147483647

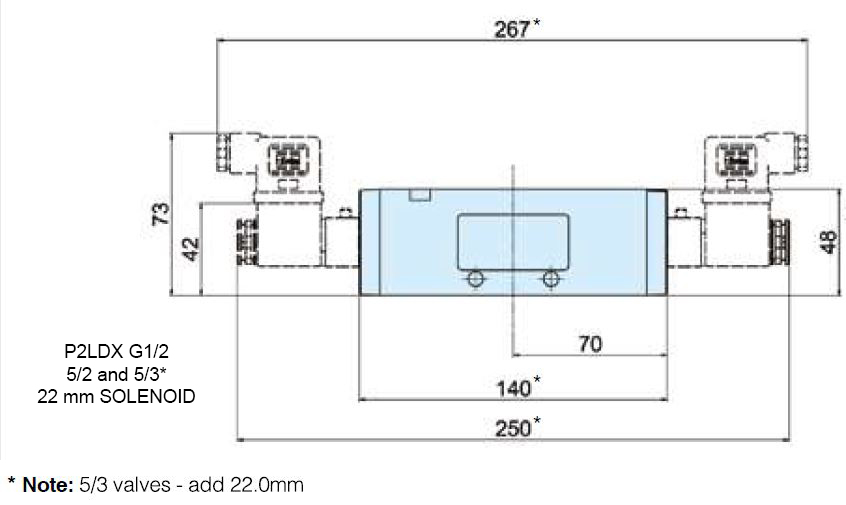

2240210015 P2LDX814EENDDB49 G1/2” BSPP 30/90 5/3 valve vented centre Solenoid operated valve Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 0,9702, KG 2565,94 DKK Ikke på lager
2147483647
2240060020 P2LAX811EENDDN G1/8” BSPP 15/40 5/3 valve vented centre Solenoid operated valve Vented 22mm solenoid pilot less coil Extended non-locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,5285, KG 1392,26 DKK Ikke på lager
2147483647

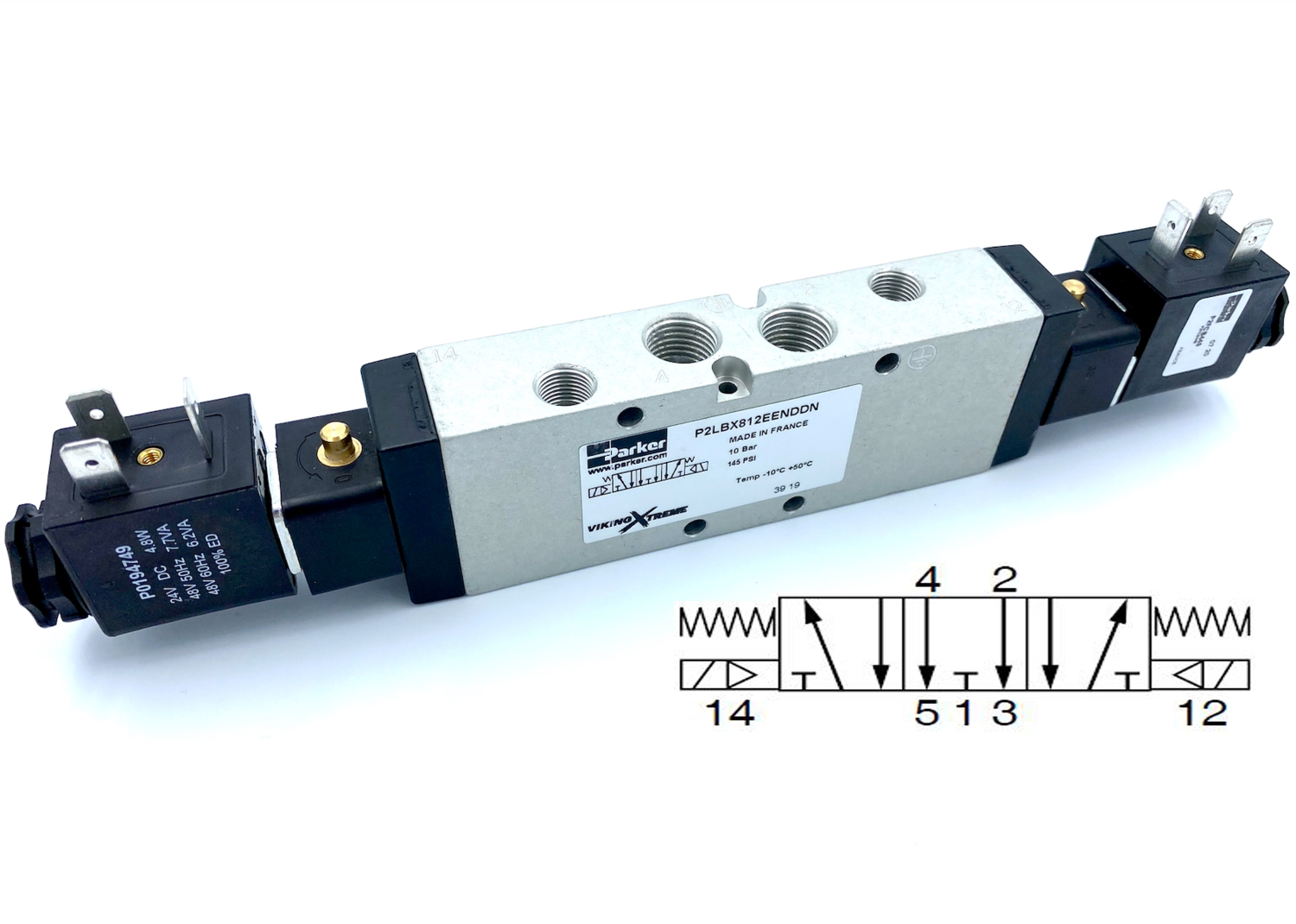

2240110025 P2LBX812EENDDN G1/4” BSPP 18/50 5/3 valve vented centre Solenoid operated valve Vented 22mm solenoid pilot less coil Extended non-locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,4983, KG 1444,85 DKK Ikke på lager
2147483647
2240160020 P2LCX813EENDDN G3/8” BSPP 20/65 5/3 valve vented centre Solenoid operated valve Vented 22mm solenoid pilot less coil Extended non-locking 3/8BsppFem, 3/8" BSPP Hun FR, Frankrig 84812090 0,9516, KG 2350,35 DKK Ikke på lager
2147483647
2240210020 P2LDX814EENDDN G1/2” BSPP 20/70 5/3 valve vented centre Solenoid operated valve Vented 22mm solenoid pilot less coil Extended non-locking 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 0,9296, KG 2292,38 DKK Ikke på lager
2147483647
