Magnet-/solenoidstyret Retningsreguleringsventil

Datasheets
2345

Viking inline ventil. Xtreme duty spool


Produktklassifisering Pneumatik
Produktkategori Ventiler
Produktgruppe Pneumatik / Luft Ventiler
Produktprogram Retningsventil
Produktunderprogram Retningsventil 5/2
Vis i fuld skærm
Hymatik varenr. Leverandør varenr.
Port Størrelse
Gevindtype
ChangeoverTime(ms)
Valve Type Function
PilotMainActuatorReturn
Solenoid Exhaust
Solenoid enclosure / Lead length
Overrides
Ventil Tilslutnings Størrelse
Oprindelsesland
TariffNumber
Vægt
Enhedspris
Lagerstatus
Favorit Sort Order

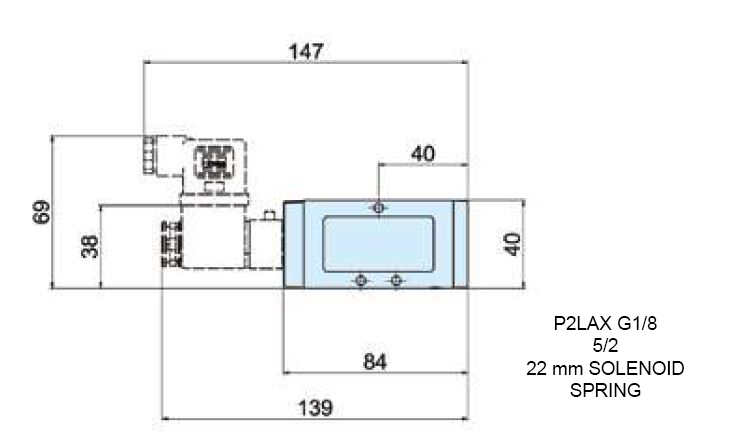

2240030015 P2LAX511ESNDDB49 G1/8” BSPP 15/35 5/2 valve Spring (return only) Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,259, KG 848,20 DKK På centrallager
2147483647

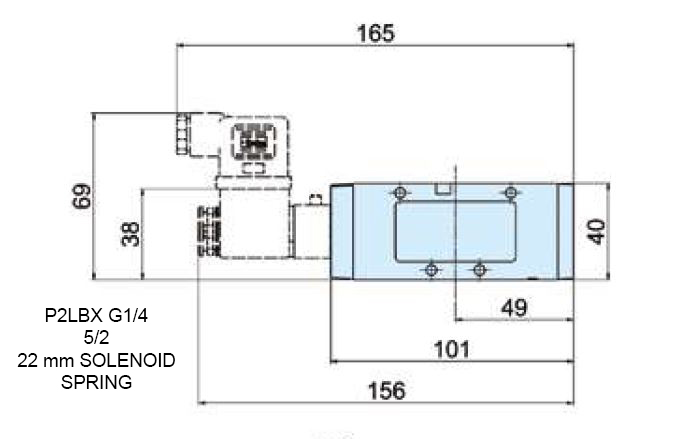

2240080015 P2LBX512ESNDDB49 G1/4” BSPP 18/45 5/2 valve Spring (return only) Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,28, KG 874,76 DKK På centrallager
2147483647

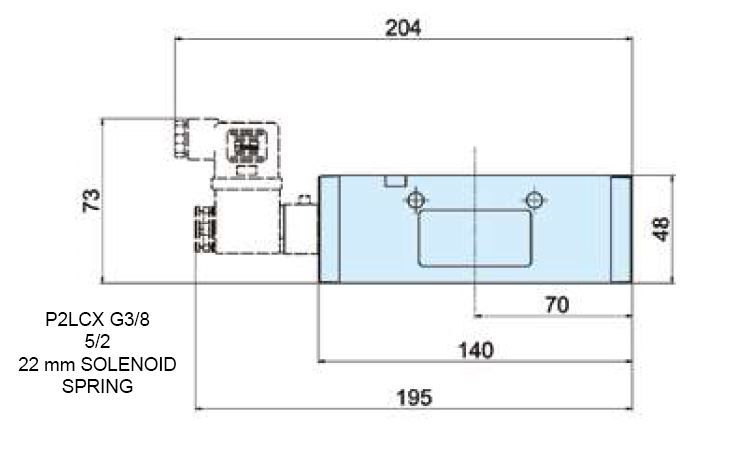

2240130015 P2LCX513ESNDDB49 G3/8” BSPP 27/75 5/2 valve Spring (return only) Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 3/8BsppFem, 3/8" BSPP Hun FR, Frankrig 84812090 0,8678, KG 1419,64 DKK På lager
2147483647
2240180015 P2LDX514ESNDDB49 G1/2” BSPP 25/75 5/2 valve Spring (return only) Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 0,52, KG 1485,73 DKK På centrallager
2147483647
2240030020 P2LAX511ESNDDN G1/8” BSPP 12/38 5/2 valve Spring (return only) Vented 22mm solenoid pilot less coil Extended non-locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,2, KG 712,43 DKK På lager
2147483647

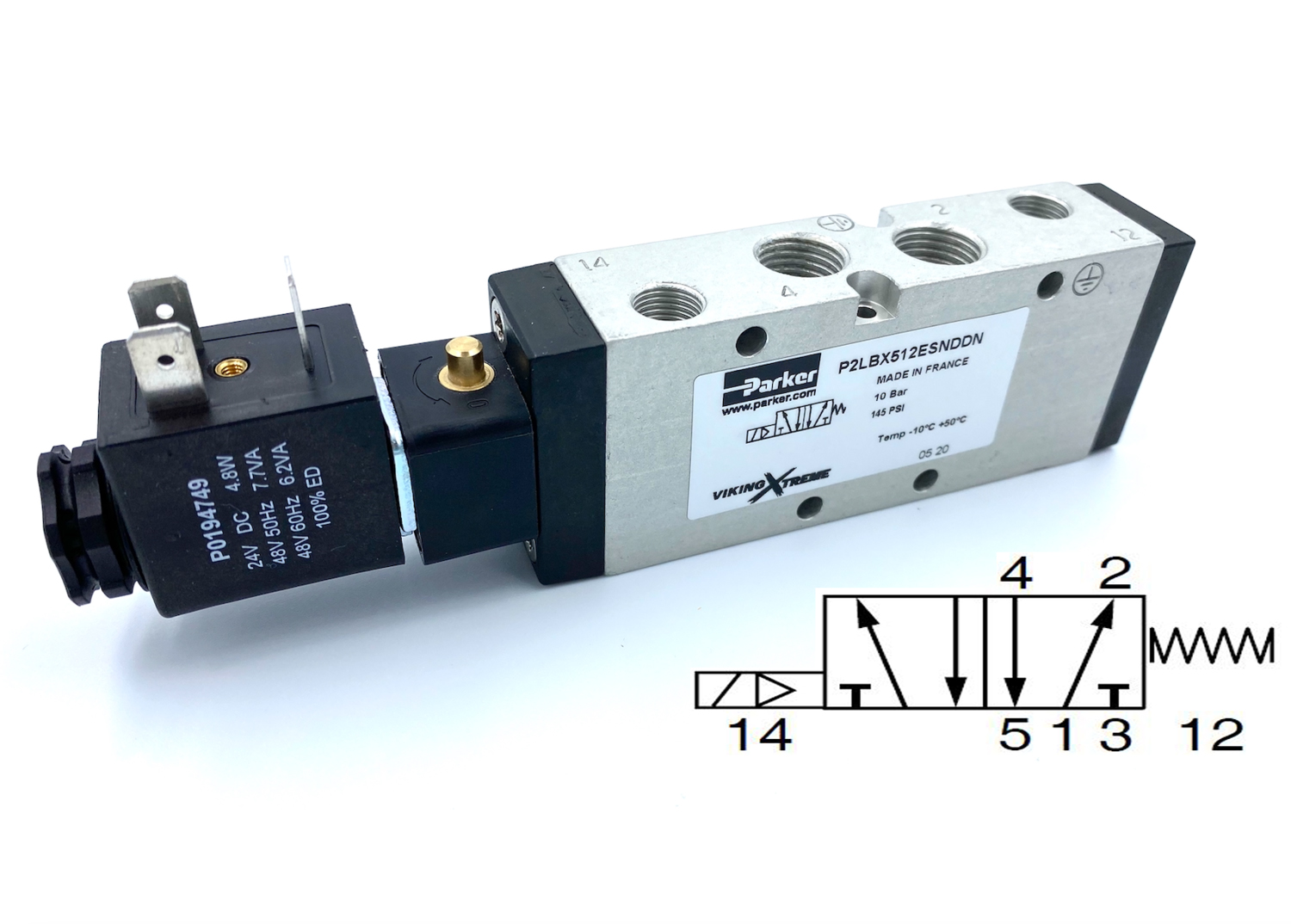

2240080020 P2LBX512ESNDDN G1/4” BSPP 14/42 5/2 valve Spring (return only) Vented 22mm solenoid pilot less coil Extended non-locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,22, KG 745,93 DKK På lager
2147483647
2240130020 P2LCX513ESNDDN G3/8” BSPP 16/60 5/2 valve Spring (return only) Vented 22mm solenoid pilot less coil Extended non-locking 3/8BsppFem, 3/8" BSPP Hun FR, Frankrig 84812090 0,48, KG 1290,43 DKK På centrallager
2147483647
2240180020 P2LDX514ESNDDN G1/2” BSPP 16/60 5/2 valve Spring (return only) Vented 22mm solenoid pilot less coil Extended non-locking 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 0,46, KG 1349,89 DKK På centrallager
2147483647
