Magnet-/solenoidstyret Retningsreguleringsventil

Datasheets
Datasheet

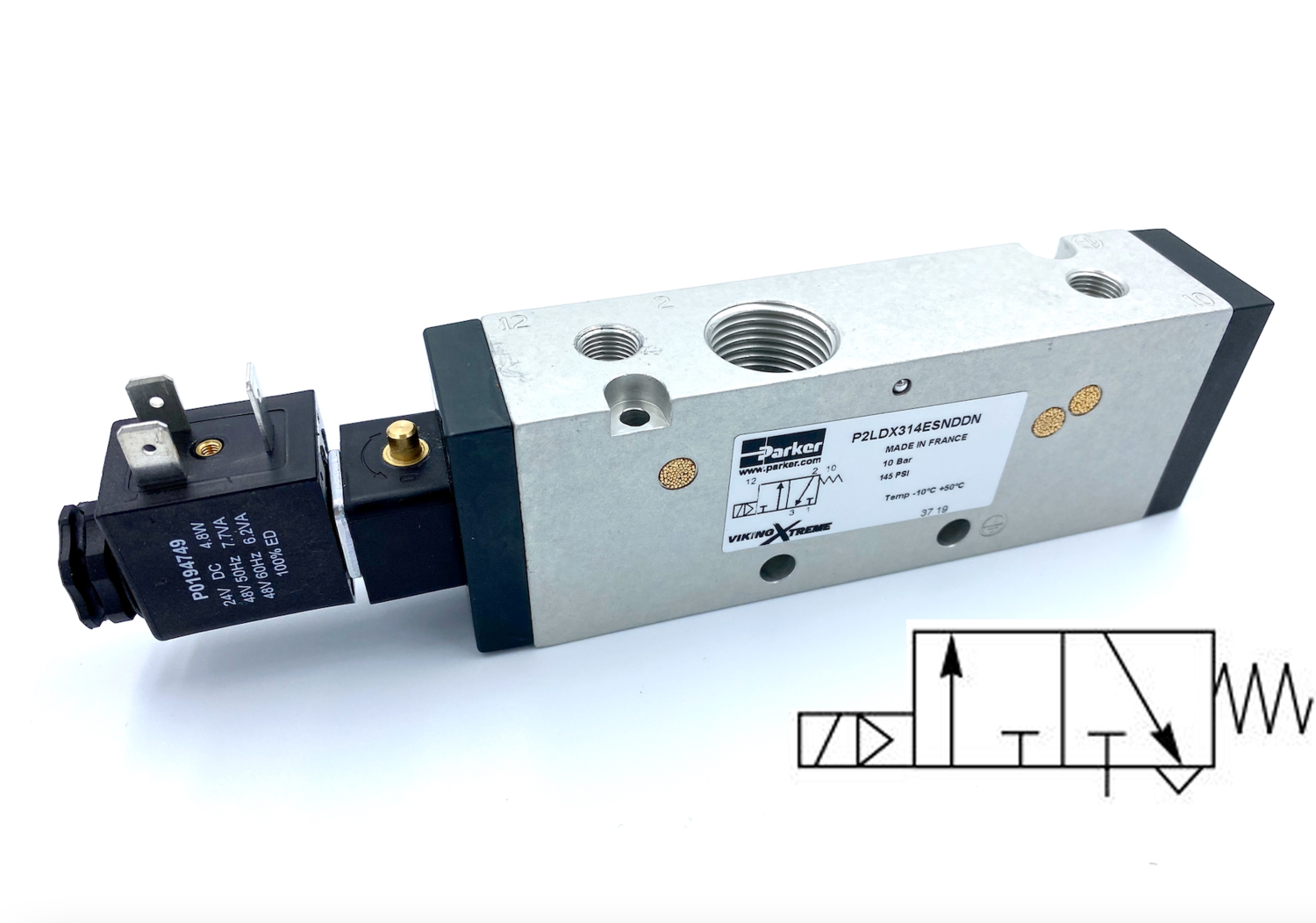

Viking inline ventil. Xtreme duty spool


Produktklassifisering Pneumatik
Produktkategori Ventiler
Produktgruppe Pneumatik / Luft Ventiler
Produktprogram Retningsventil
Produktunderprogram Retningsventil 3/2
Vis i fuld skærm
Hymatik varenr. Leverandør varenr.
Port Størrelse
Gevindtype
ChangeoverTime(ms)
Valve Type Function
PilotMainActuatorReturn
Solenoid Exhaust
Solenoid enclosure / Lead length
Overrides
Ventil Tilslutnings Størrelse
Oprindelsesland
TariffNumber
Vægt
Enhedspris
Lagerstatus
Favorit Sort Order

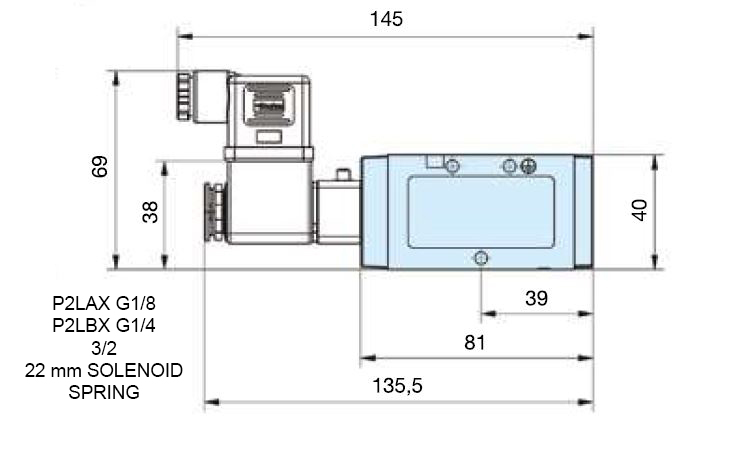

2240020015 P2LAX311ESNDDB49 G1/8” BSPP 18/40 3/2 valve Spring (return only) Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,5307, KG 818,51 DKK Ikke på lager
2147483647
2240070015 P2LBX312ESNDDB49 G1/4” BSPP 18/45 3/2 valve Spring (return only) Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,5209, KG 828,88 DKK På centrallager
2147483647

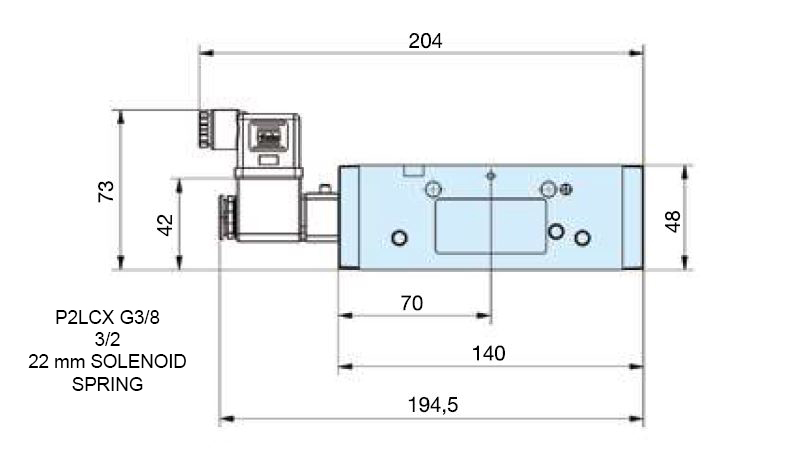

2240120015 P2LCX313ESNDDB49 G3/8” BSPP 25/75 3/2 valve Spring (return only) Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 3/8BsppFem, 3/8" BSPP Hun FR, Frankrig 84812090 1,0209, KG 1183,53 DKK Ikke på lager
2147483647

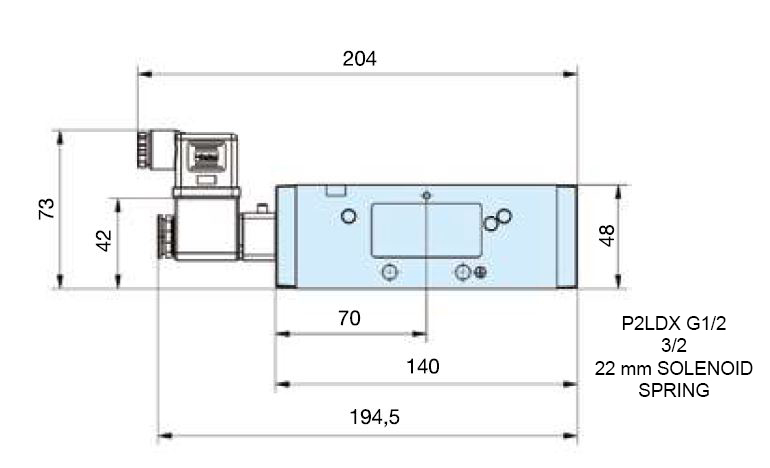

2240170015 P2LDX314ESNDDB49 G1/2” BSPP 25/75 3/2 valve Spring (return only) Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 1,0337, KG 1193,75 DKK Ikke på lager
2147483647
2240020020 P2LAX311ESNDDN G1/8” BSPP 18/40 3/2 valve Spring (return only) Vented 22mm solenoid pilot less coil Extended non-locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,4887, KG 778,08 DKK På lager
2147483647
2240070020 P2LBX312ESNDDN G1/4” BSPP 18/45 3/2 valve Spring (return only) Vented 22mm solenoid pilot less coil Extended non-locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,2, KG 778,38 DKK På lager
2147483647
2240120020 P2LCX313ESNDDN G3/8” BSPP 25/75 3/2 valve Spring (return only) Vented 22mm solenoid pilot less coil Extended non-locking 3/8BsppFem, 3/8" BSPP Hun FR, Frankrig 84812090 0,9666, KG 1132,65 DKK Ikke på lager
2147483647
2240170020 P2LDX314ESNDDN G1/2” BSPP 25/75 3/2 valve Spring (return only) Vented 22mm solenoid pilot less coil Extended non-locking 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 0,9963, KG 1147,20 DKK Ikke på lager
2147483647
