Magnet-/solenoidstyret Retningsreguleringsventil

Datasheets
Datasheet

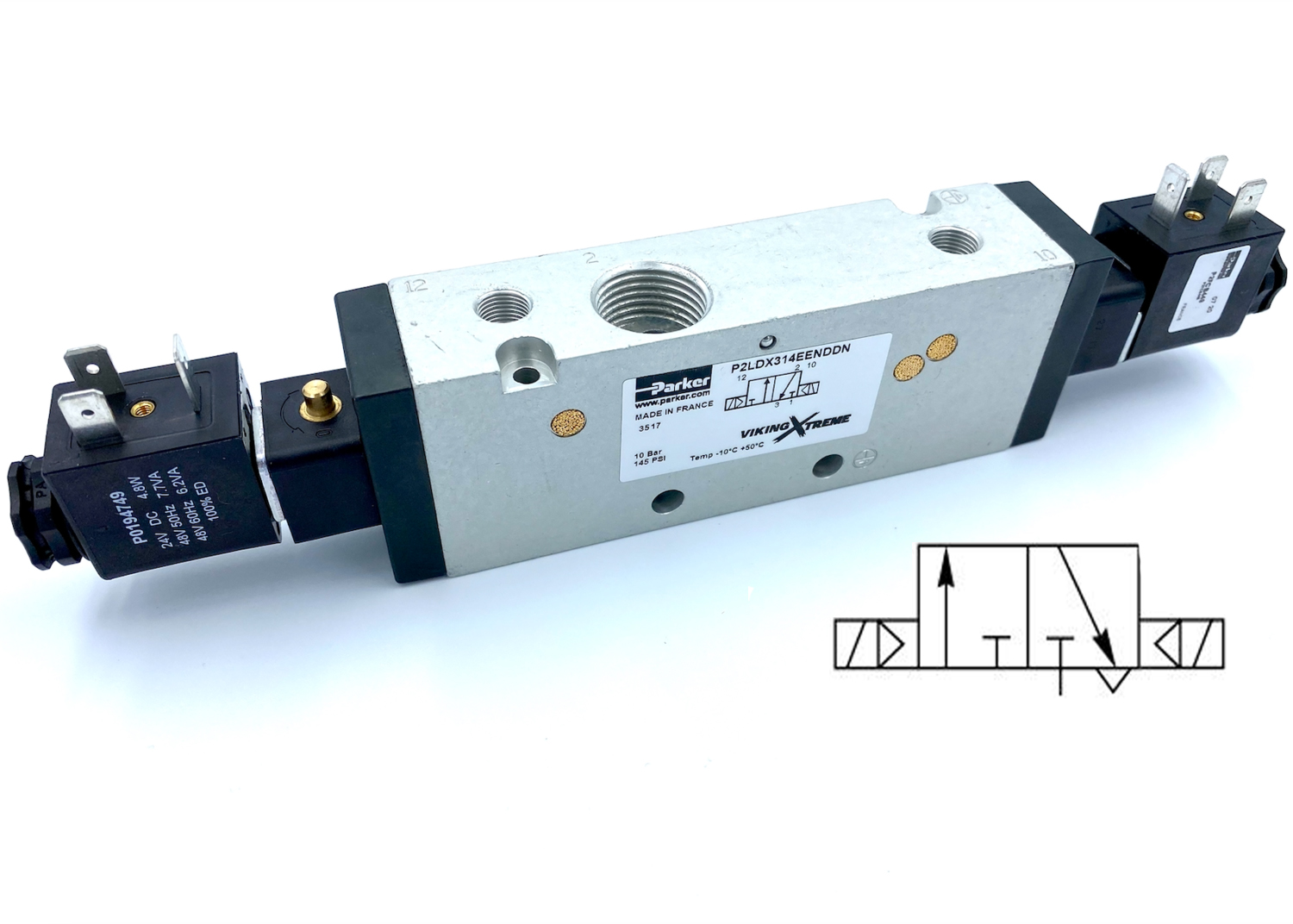

Viking inline ventil. Xtreme duty spool


Produktklassifisering Pneumatik
Produktkategori Ventiler
Produktgruppe Pneumatik / Luft Ventiler
Produktprogram Retningsventil
Produktunderprogram Retningsventil 3/2
Vis i fuld skærm
Hymatik varenr. Leverandør varenr.
Port Størrelse
Gevindtype
ChangeoverTime(ms)
Valve Type Function
PilotMainActuatorReturn
Solenoid Exhaust
Solenoid enclosure / Lead length
Overrides
Ventil Tilslutnings Størrelse
Oprindelsesland
TariffNumber
Vægt
Enhedspris
Lagerstatus
Favorit Sort Order

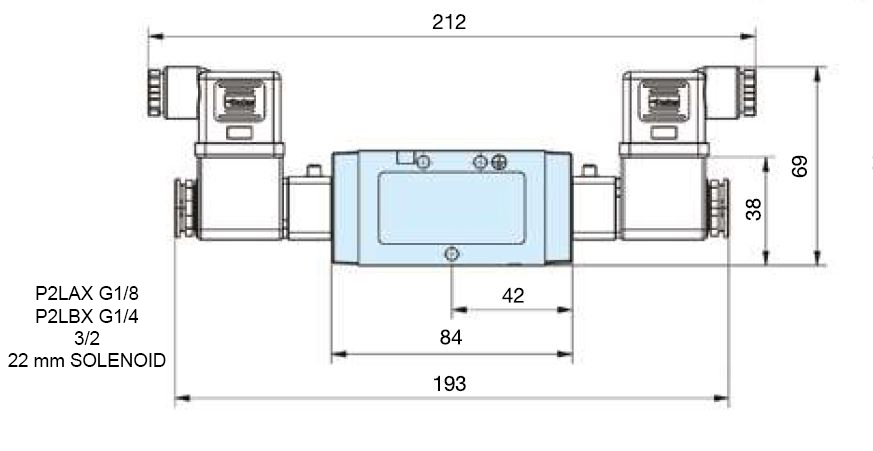

2240020010 P2LAX311EENDDN G1/8” BSPP 10/10 3/2 valve Solenoid operated valve Vented 22mm solenoid pilot less coil Extended non-locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,536, KG 1018,44 DKK På lager
2147483647
2240070010 P2LBX312EENDDN G1/4” BSPP 10/12 3/2 valve Solenoid operated valve Vented 22mm solenoid pilot less coil Extended non-locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,5203, KG 1015,60 DKK På lager
2147483647

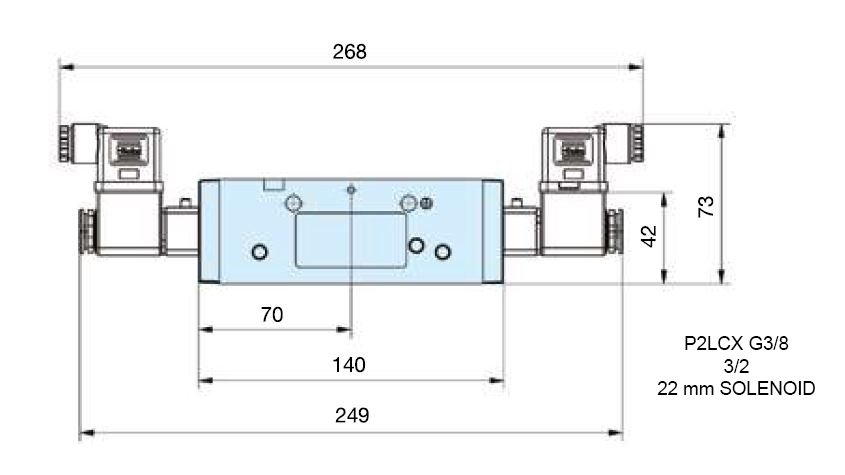

2240120010 P2LCX313EENDDN G3/8” BSPP 17/17 3/2 valve Solenoid operated valve Vented 22mm solenoid pilot less coil Extended non-locking 3/8BsppFem, 3/8" BSPP Hun Ikke på lager 2147483647

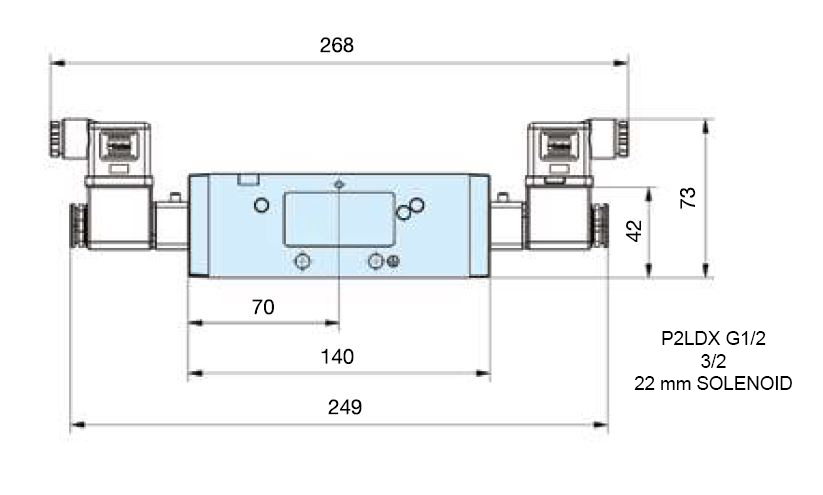

2240170010 P2LDX314EENDDN G1/2” BSPP 17/17 3/2 valve Solenoid operated valve Vented 22mm solenoid pilot less coil Extended non-locking 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 1,0119, KG 1481,18 DKK Ikke på lager
2147483647
2240020005 P2LAX311EENDDB49 G1/8” BSPP 10/10 3/2 valve Solenoid operated valve Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,6219, KG 1040,22 DKK Ikke på lager
2147483647
2240070005 P2LBX312EENDDB49 G1/4” BSPP 10/12 3/2 valve Solenoid operated valve Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,6122, KG 1119,82 DKK Ikke på lager
2147483647
2240120005 P2LCX313EENDDB49 G3/8” BSPP 17/17 3/2 valve Solenoid operated valve Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 3/8BsppFem, 3/8" BSPP Hun FR, Frankrig 84812090 1,1079, KG 1502,44 DKK Ikke på lager
2147483647
2240170005 P2LDX314EENDDB49 G1/2” BSPP 17/17 3/2 valve Solenoid operated valve Vented 22mm 3-pin Industrial Form B with coil Extended non-locking 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 1,1206, KG 1512,74 DKK Ikke på lager
2147483647
