Magnet-/solenoidstyret Retningsreguleringsventil

Datasheets
2345

Viking inline ventil. Xtreme duty spool


Produktklassifisering Pneumatik
Produktkategori Ventiler
Produktgruppe Pneumatik / Luft Ventiler
Produktprogram Retningsventil

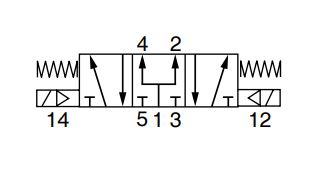

Produktunderprogram Retningsventil 5/3
Vis i fuld skærm
Hymatik varenr. Leverandør varenr.
Port Størrelse
Gevindtype
ChangeoverTime(ms)
Valve Type Function
PilotMainActuatorReturn
Solenoid Exhaust
Solenoid enclosure / Lead length
Overrides
Ventil Tilslutnings Størrelse
Oprindelsesland
TariffNumber
Vægt
Enhedspris
Lagerstatus
Favorit Sort Order

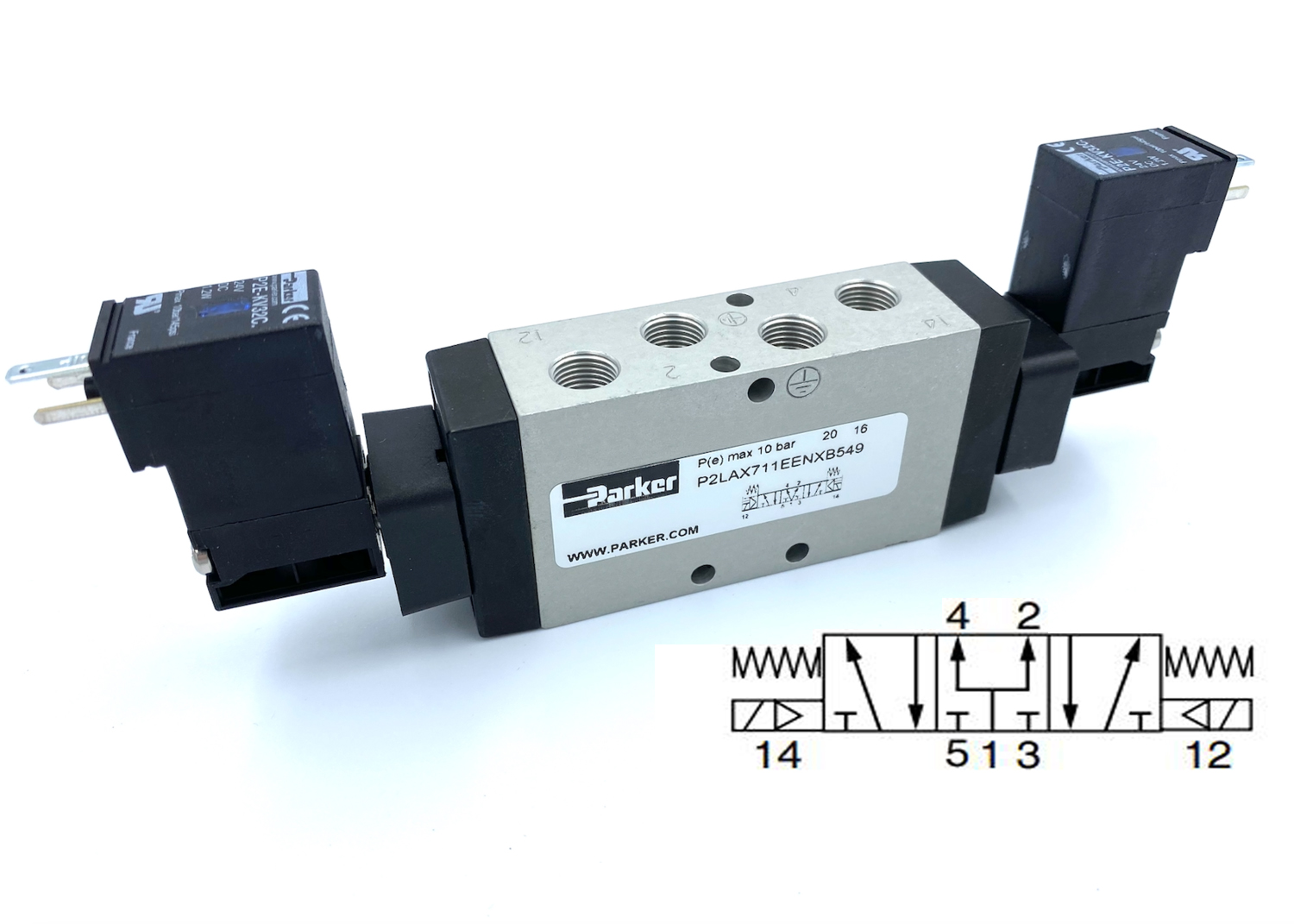

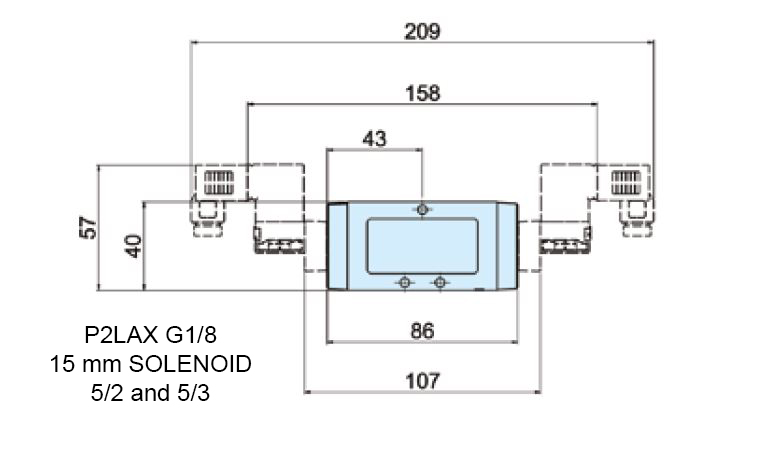

H00090502 P2LAX711EENXB549 G1/8” BSPP 18/40 5/3 valve pressurised centre Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,6241, KG 1763,25 DKK Ikke på lager
2147483647
H00090503 P2LBX712EENXB549 G1/4” BSPP 22/55 5/3 valve pressurised centre Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,6979, KG 1768,77 DKK Ikke på lager
2147483647

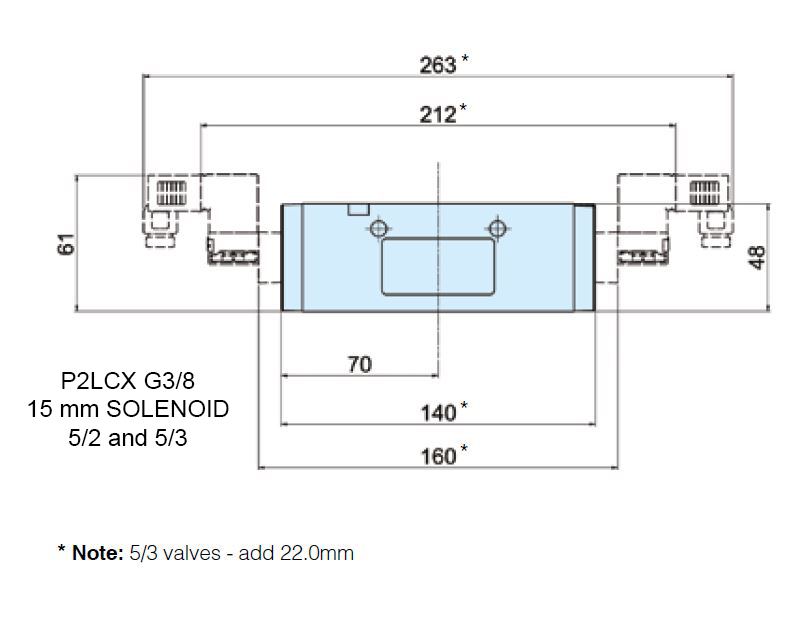

H00090504 P2LCX713EENXB549 G3/8” BSPP 30/90 5/3 valve pressurised centre Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 3/8BsppFem, 3/8" BSPP Hun FR, Frankrig 84812090 0,9779, KG 2605,41 DKK Ikke på lager
2147483647

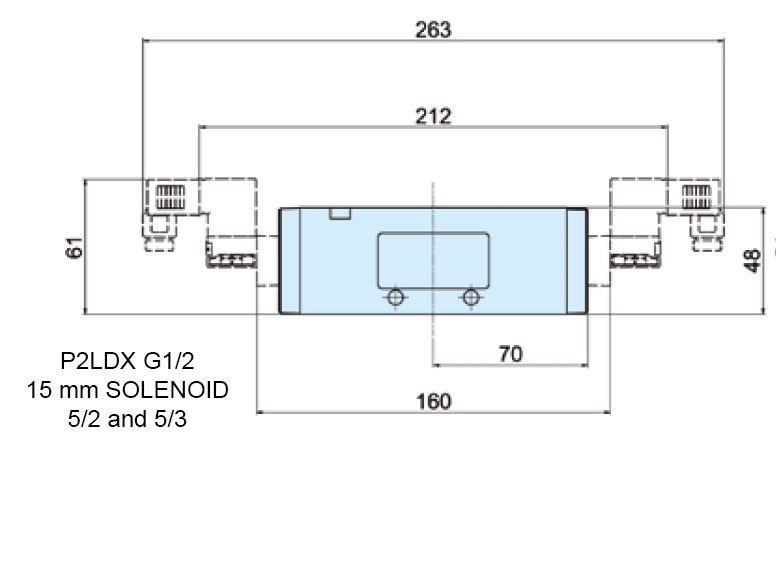

H00090505 P2LDX714EENXB549 G1/2” BSPP 30/95 5/3 valve pressurised centre Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 0,9549, KG 2790,19 DKK Ikke på lager
2147483647
H00090530 P2LAX711EENXXX G1/8” BSPP 18/40 5/3 valve pressurised centre Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,4886, KG 914,75 DKK Ikke på lager
2147483647
H00090531 P2LBX712EENXXX G1/4” BSPP 22/55 5/3 valve pressurised centre Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,5646, KG 930,71 DKK Ikke på lager
2147483647
H00090532 P2LCX713EENXXX G3/8” BSPP 30/90 5/3 valve pressurised centre Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 3/8BsppFem, 3/8" BSPP Hun FR, Frankrig 84812090 0,9037, KG 1757,13 DKK Ikke på lager
2147483647
H00090533 P2LDX714EENXXX G1/2” BSPP 30/95 5/3 valve pressurised centre Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 0,8807, KG 1810,02 DKK Ikke på lager
2147483647
