Magnet-/solenoidstyret Retningsreguleringsventil

Datasheets
2345

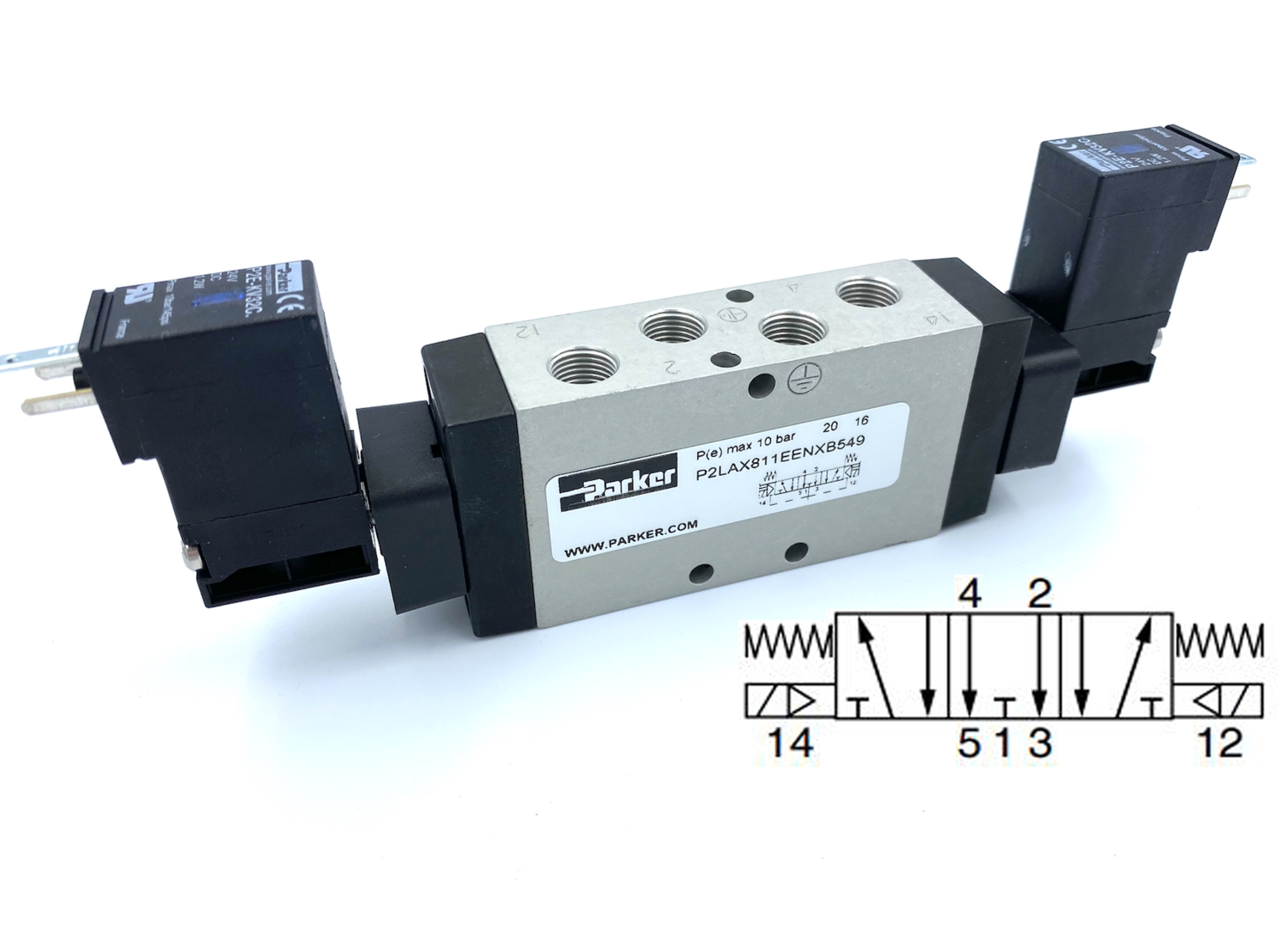

Viking inline ventil. Xtreme duty spool


Produktklassifisering Pneumatik
Produktkategori Ventiler
Produktgruppe Pneumatik / Luft Ventiler
Produktprogram Retningsventil
Produktunderprogram Retningsventil 5/3
Vis i fuld skærm
Hymatik varenr. Leverandør varenr.
Port Størrelse
Gevindtype
ChangeoverTime(ms)
Valve Type Function
PilotMainActuatorReturn
Solenoid Exhaust
Solenoid enclosure / Lead length
Overrides
Ventil Tilslutnings Størrelse
Oprindelsesland
TariffNumber
Vægt
Enhedspris
Lagerstatus
Favorit Sort Order
H00090526 P2LAX811EENXXX G1/8” BSPP 18/40 5/3 valve vented centre Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,4837, KG 914,75 DKK Ikke på lager
2147483647
H00090527 P2LBX812EENXXX G1/4” BSPP 22/55 5/3 valve vented centre Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,3945, KG 930,71 DKK Ikke på lager
2147483647
H00090528 P2LCX813EENXXX G3/8” BSPP 30/90 5/3 valve vented centre Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 3/8BsppFem, 3/8" BSPP Hun Ikke på lager 2147483647
H00090529 P2LDX814EENXXX G1/2” BSPP 30/95 5/3 valve vented centre Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 0,8847, KG 1810,02 DKK Ikke på lager
2147483647
H00090498 P2LAX811EENXB549 G1/8” BSPP 18/40 5/3 valve vented centre Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,6192, KG 1763,25 DKK Ikke på lager
2147483647
H00090499 P2LBX812EENXB549 G1/4” BSPP 22/55 5/3 valve vented centre Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,5277, KG 1768,77 DKK Ikke på lager
2147483647
H00090500 P2LCX813EENXB549 G3/8” BSPP 30/90 5/3 valve vented centre Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 3/8BsppFem, 3/8" BSPP Hun Ikke på lager 2147483647
H00090501 P2LDX814EENXB549 G1/2” BSPP 30/95 5/3 valve vented centre Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 0,9589, KG 2658,74 DKK Ikke på lager
2147483647
