Magnet-/solenoidstyret Retningsreguleringsventil

Datasheets
2345

Viking inline ventil. Xtreme duty spool


Produktklassifisering Pneumatik
Produktkategori Ventiler
Produktgruppe Pneumatik / Luft Ventiler
Produktprogram Retningsventil
Produktunderprogram Retningsventil 5/3
Vis i fuld skærm
Hymatik varenr. Leverandør varenr.
Port Størrelse
Gevindtype
ChangeoverTime(ms)
Valve Type Function
PilotMainActuatorReturn
Solenoid Exhaust
Solenoid enclosure / Lead length
Overrides
Ventil Tilslutnings Størrelse
Oprindelsesland
TariffNumber
Vægt
Enhedspris
Lagerstatus
Favorit Sort Order

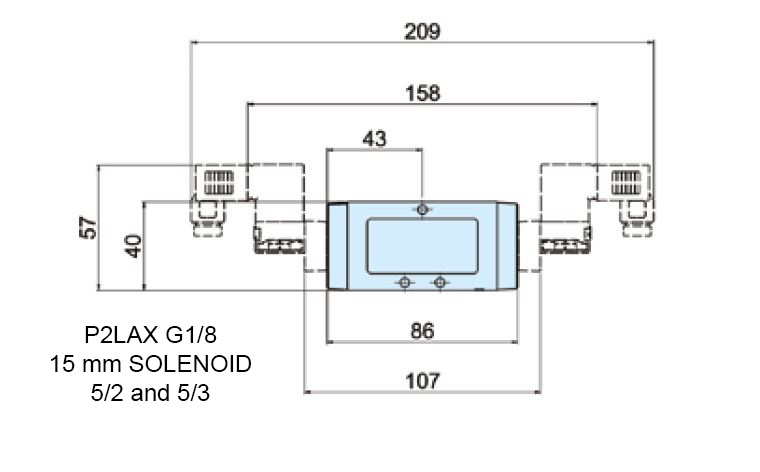

H00090494 P2LAX611EENXB549 G1/8” BSPP 18/40 5/3 valve closed centre position Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,6209, KG 1763,25 DKK Ikke på lager
2147483647

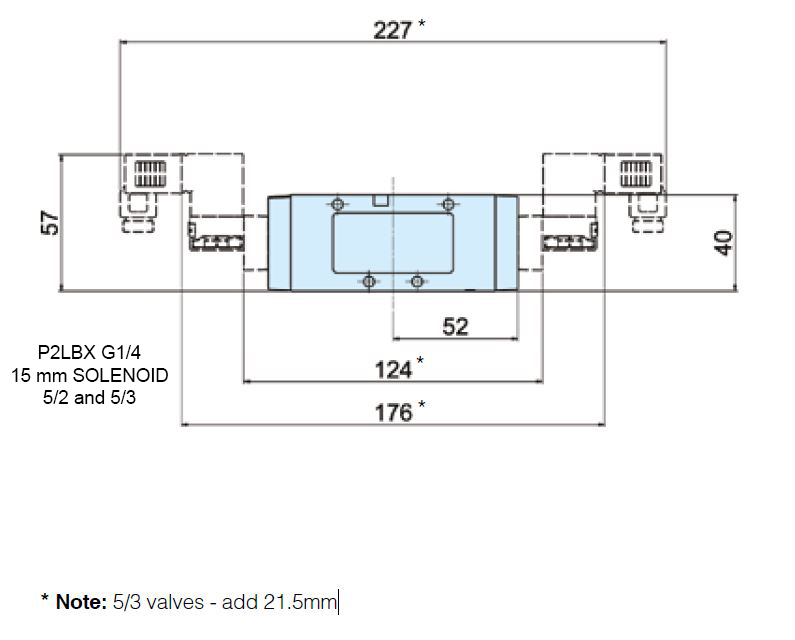

H00090495 P2LBX612EENXB549 G1/4” BSPP 22/55 5/3 valve closed centre position Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,5277, KG 1768,77 DKK Ikke på lager
2147483647

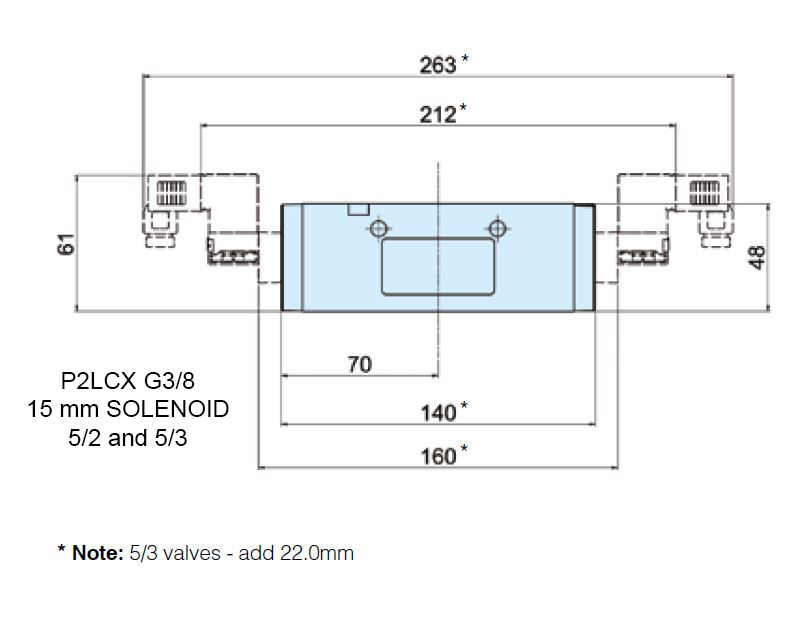

H00090496 P2LCX613EENXB549 G3/8” BSPP 30/90 5/3 valve closed centre position Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 3/8BsppFem, 3/8" BSPP Hun FR, Frankrig 84812090 0,9799, KG 2605,41 DKK Ikke på lager
2147483647

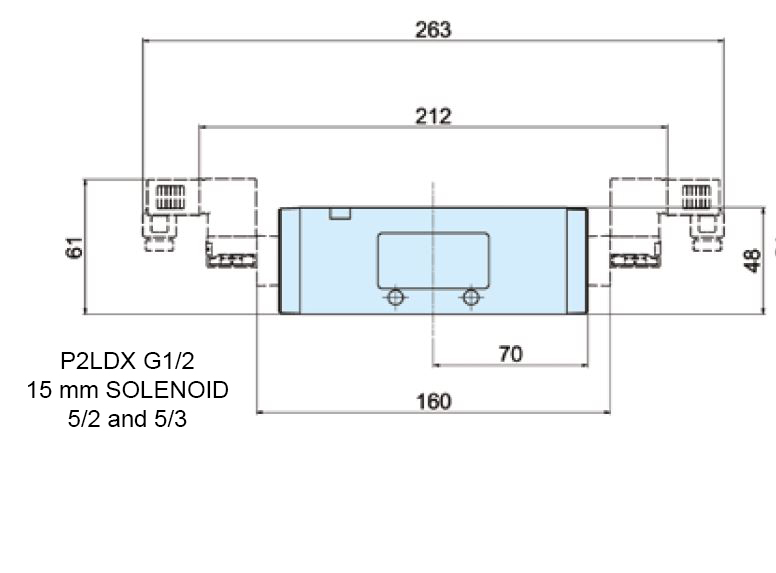

H00090497 P2LDX614EENXB549 G1/2” BSPP 30/95 5/3 valve closed centre position Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 0,9599, KG 2658,74 DKK Ikke på lager
2147483647
H00090522 P2LAX611EENXXX G1/8” BSPP 18/40 5/3 valve closed centre position Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,2133, KG 910,19 DKK Ikke på lager
2147483647
H00090523 P2LBX612EENXXX G1/4” BSPP 22/55 5/3 valve closed centre position Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,3945, KG 930,71 DKK Ikke på lager
2147483647
H00090524 P2LCX613EENXXX G3/8” BSPP 30/90 5/3 valve closed centre position Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 3/8BsppFem, 3/8" BSPP Hun FR, Frankrig 84812090 0,9057, KG 1757,13 DKK Ikke på lager
2147483647
H00090525 P2LDX614EENXXX G1/2” BSPP 30/95 5/3 valve closed centre position Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 1/2BsppFem, 1/2" BSPP Hun FR, Frankrig 84812090 0,8857, KG 1810,02 DKK Ikke på lager
2147483647
