Magnet-/solenoidstyret Retningsreguleringsventil

Datasheets
Datasheet

Viking inline ventil. Xtreme duty spool


Produktklassifisering Pneumatik
Produktkategori Ventiler
Produktgruppe Pneumatik / Luft Ventiler
Produktprogram Retningsventil
Produktunderprogram Retningsventil 3/2
Vis i fuld skærm
Hymatik varenr. Leverandør varenr.
Port Størrelse
Gevindtype
ChangeoverTime(ms)

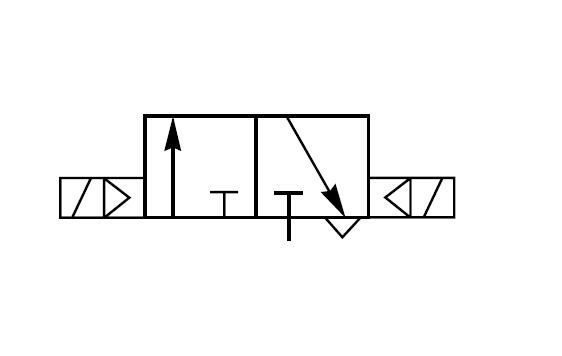

Valve Type Function
PilotMainActuatorReturn
Solenoid Exhaust
Solenoid enclosure / Lead length
Overrides
Ventil Tilslutnings Størrelse
Oprindelsesland
TariffNumber
Vægt
Enhedspris
Lagerstatus
Favorit Sort Order

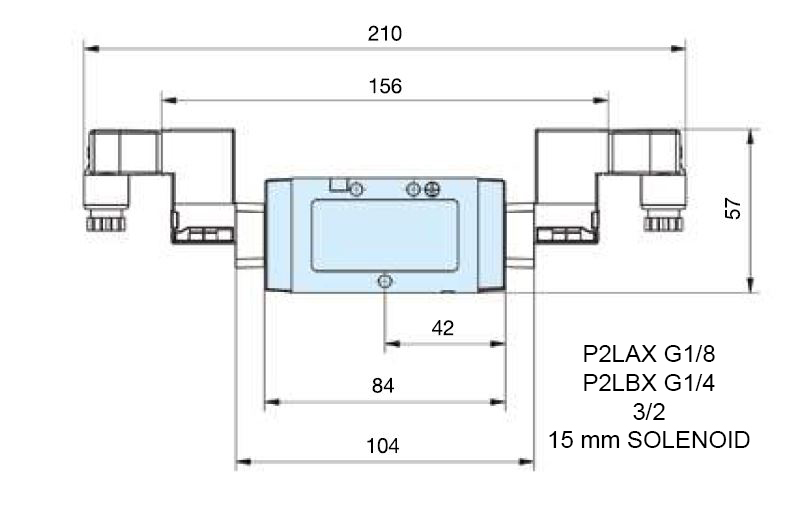

H00090478 P2LAX311EENXB549 G1/8” BSPP 10/10 3/2 valve Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 1/8BsppFem, 1/8" BSPP Hun FR, Frankrig 84812090 0,5833, KG 1095,65 DKK Ikke på lager
2147483647
H00090479 P2LBX312EENXB549 G1/4” BSPP 10/12 3/2 valve Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 0,5736, KG 1141,75 DKK Ikke på lager
2147483647

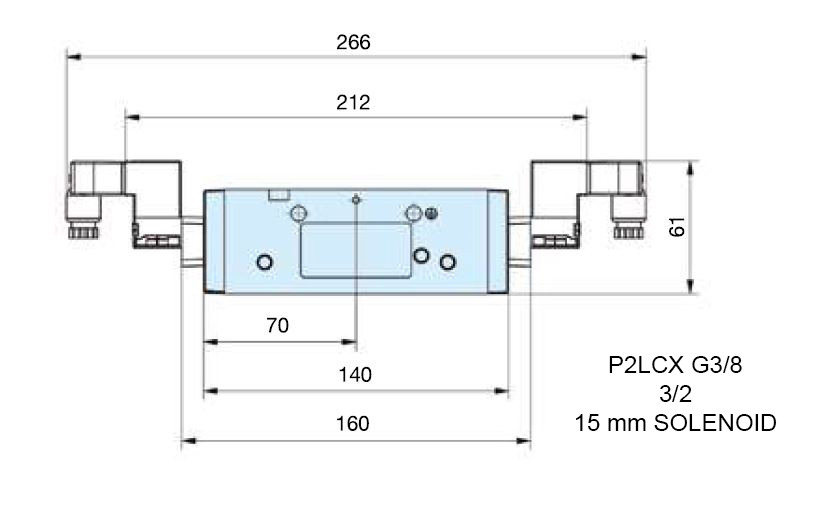

H00090480 P2LCX313EENXB549 G3/8” BSPP 17/17 3/2 valve Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 3/8BsppFem, 3/8" BSPP Hun Ikke på lager 2147483647

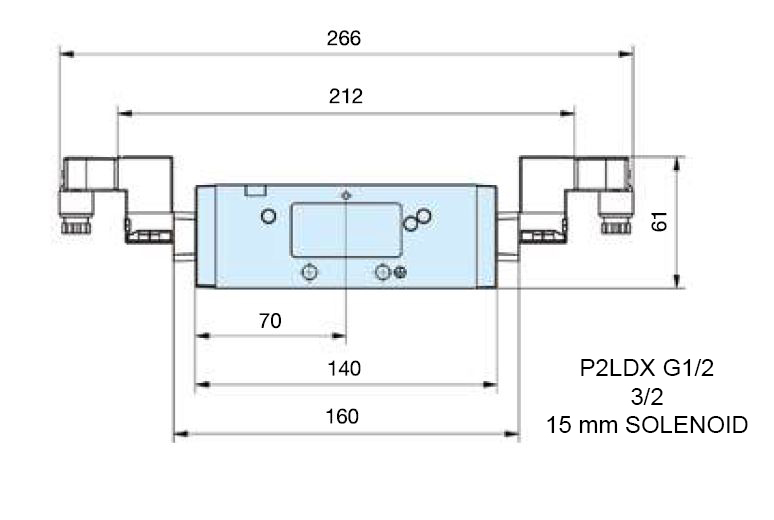

H00090481 P2LDX314EENXB549 G1/2” BSPP 17/17 3/2 valve Solenoid operated valve 15mm solenoid vented 15mm, 3 pin Form C/ISO15217 in line with body Flush - non locking 1/2BsppFem, 1/2" BSPP Hun KG Ikke på lager 2147483647
H00090506 P2LAX311EENXXX G1/8” BSPP 10/10 3/2 valve Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 1/8BsppFem, 1/8" BSPP Hun IT, Italien 84812090 0,5312, KG 447,23 DKK Ikke på lager
2147483647
H00090507 P2LBX312EENXXX G1/4” BSPP 10/12 3/2 valve Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 1/4BsppFem, 1/4" BSPP Hun FR, Frankrig 84812090 1, KG 590,09 DKK Ikke på lager
2147483647
H00090508 P2LCX313EENXXX G3/8” BSPP 17/17 3/2 valve Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 3/8BsppFem, 3/8" BSPP Hun KG Ikke på lager 2147483647
H00090509 P2LDX314EENXXX G1/2” BSPP 17/17 3/2 valve Solenoid operated valve 15mm solenoid vented Valve less 15mm solenoid Less 15mm solenoid 1/2BsppFem, 1/2" BSPP Hun KG Ikke på lager 2147483647
