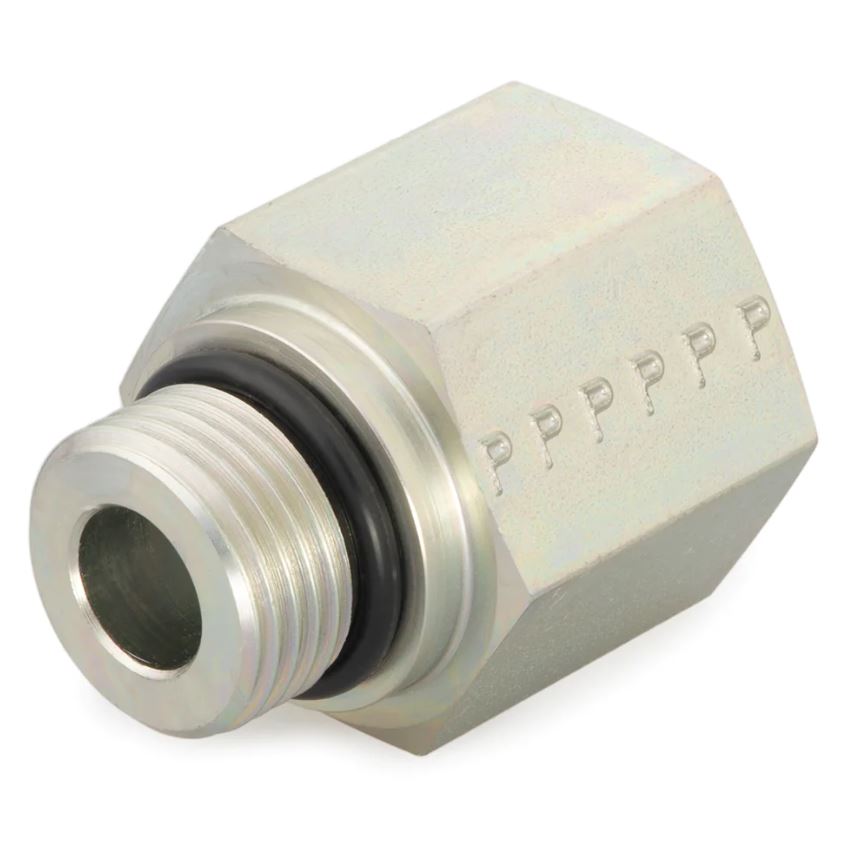

Lige Gevind Reduceringing F5OG5

Datasheets
Straight Thread Reducer Expander F5OG5
Samlingskombination Gevind-til-Gevind
Produktklassifisering Proces
Produktkategori Fittings
Produktgruppe Process Fittings
Produktprogram Adaptorer, Instrument Pipe Fittings
Vis i fuld skærm
Hymatik varenr. Leverandør varenr.
Alok Fitting Option
Materiale
Materiale Standard
Vægt
Product Category
T1 Thread Size
T1 Thread Type
T2 Thread Size
T2 Thread Type

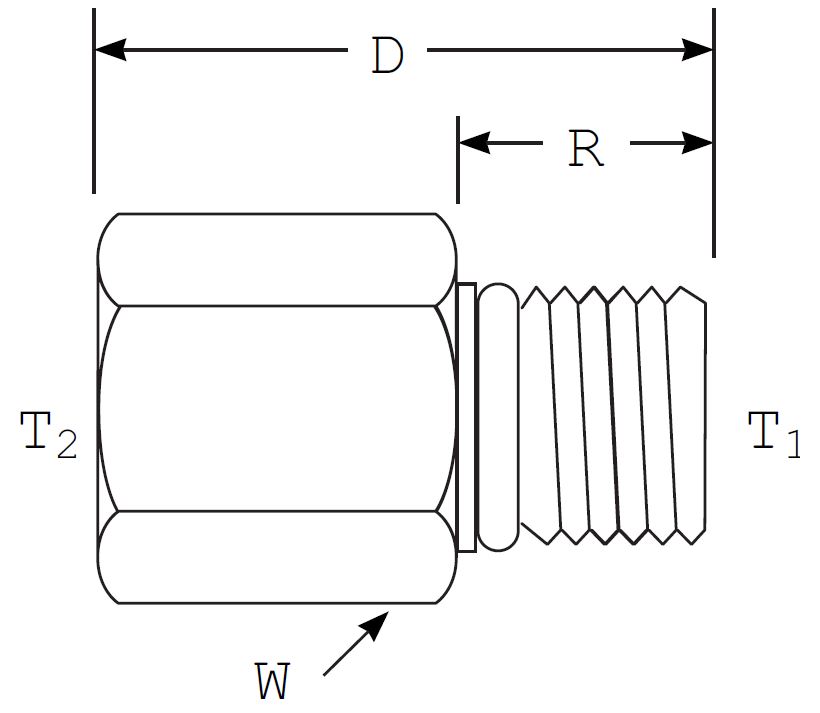

W Hex Inches
D Inches
R Inches
Interchanges With
O-Ring
Note
D2 Drill Inches
Oprindelsesland
TariffNumber
Enhedspris
Lagerstatus
Favorit Sort Order
H00069930 6-4 F5OG5-B Standard Messing ASTM: B16, ASTM: B 453 KG Instrument Pipe Fittings 9/16-18 PORT THD UN/UNF-2A 7/16-20 PORT THD UN/UNF-2B 11/16 1.03 0.36 6-RBST-4 3-904 D2 drill is optional manufacturing method per SAE, 0.30 Ikke på lager 2147483647
H00069932 8-4 F5OG5-SS Standard Rustfrit Stål ASTM: A276, ASME: SA 479 Instrument Pipe Fittings 3/4-16 PORT THD UN/UNF-2A 7/16-20 PORT THD UN/UNF-2B 7/8 1.09 0.36 8-RBST-4 3-904 D2 drill is optional manufacturing method per SAE, 0.38 Ikke på lager 2147483647
H00069933 8-4 F5OG5-B Standard Messing ASTM: B16, ASTM: B 453 KG Instrument Pipe Fittings 3/4-16 PORT THD UN/UNF-2A 7/16-20 PORT THD UN/UNF-2B 7/8 1.09 0.36 8-RBST-4 3-904 D2 drill is optional manufacturing method per SAE, 0.38 Ikke på lager 2147483647
H00069934 8-4 F5OG5-S Standard Stål KG Instrument Pipe Fittings 3/4-16 PORT THD UN/UNF-2A 7/16-20 PORT THD UN/UNF-2B 7/8 1.09 0.36 8-RBST-4 3-904 D2 drill is optional manufacturing method per SAE, 0.38 Ikke på lager 2147483647
H00069935 12-8 F5OG5-SS Standard Rustfrit Stål ASTM: A276, ASME: SA 479 0,1562, KG Instrument Pipe Fittings 1-1/16-12 PORT THD UN/UNF-2A 3/4-16 PORT THD UN/UNF-2B 1-1/4 1 0.44 12-RBST-8 3-908 D2 drill is optional manufacturing method per SAE, 0.63 US, USA 73072910 1075,36 DKK Ikke på lager
Minimum 5
 2147483647
H00069936 12-8 F5OG5-B Standard Messing ASTM: B16, ASTM: B 453 KG Instrument Pipe Fittings 1-1/16-12 PORT THD UN/UNF-2A 3/4-16 PORT THD UN/UNF-2B 1-1/4 1 0.44 12-RBST-8 3-908 D2 drill is optional manufacturing method per SAE, 0.63 Ikke på lager 2147483647
H00069937 12-8 F5OG5-S Standard Stål 0,1442, KG Instrument Pipe Fittings 1-1/16-12 PORT THD UN/UNF-2A 3/4-16 PORT THD UN/UNF-2B 1-1/4 1 0.44 12-RBST-8 3-908 D2 drill is optional manufacturing method per SAE, 0.63 CN, Kina 73079910 165,09 DKK Ikke på lager
Minimum 20
 2147483647
H00069938 16-12 F5OG5-SS Standard Rustfrit Stål ASTM: A276, ASME: SA 479 KG Instrument Pipe Fittings 1-5/16-12 PORT THD UN/UNF-2A 1-1/16-12 PORT THD UN/UNF-2B 1-1/2 1.75 0.59 16-RBST-12 3-912 D2 drill is optional manufacturing method per SAE, 0.75 Ikke på lager 2147483647
H00069939 16-12 F5OG5-B Standard Messing ASTM: B16, ASTM: B 453 KG Instrument Pipe Fittings 1-5/16-12 PORT THD UN/UNF-2A 1-1/16-12 PORT THD UN/UNF-2B 1-1/2 1.75 0.59 16-RBST-12 3-912 D2 drill is optional manufacturing method per SAE, 0.75 Ikke på lager 2147483647
