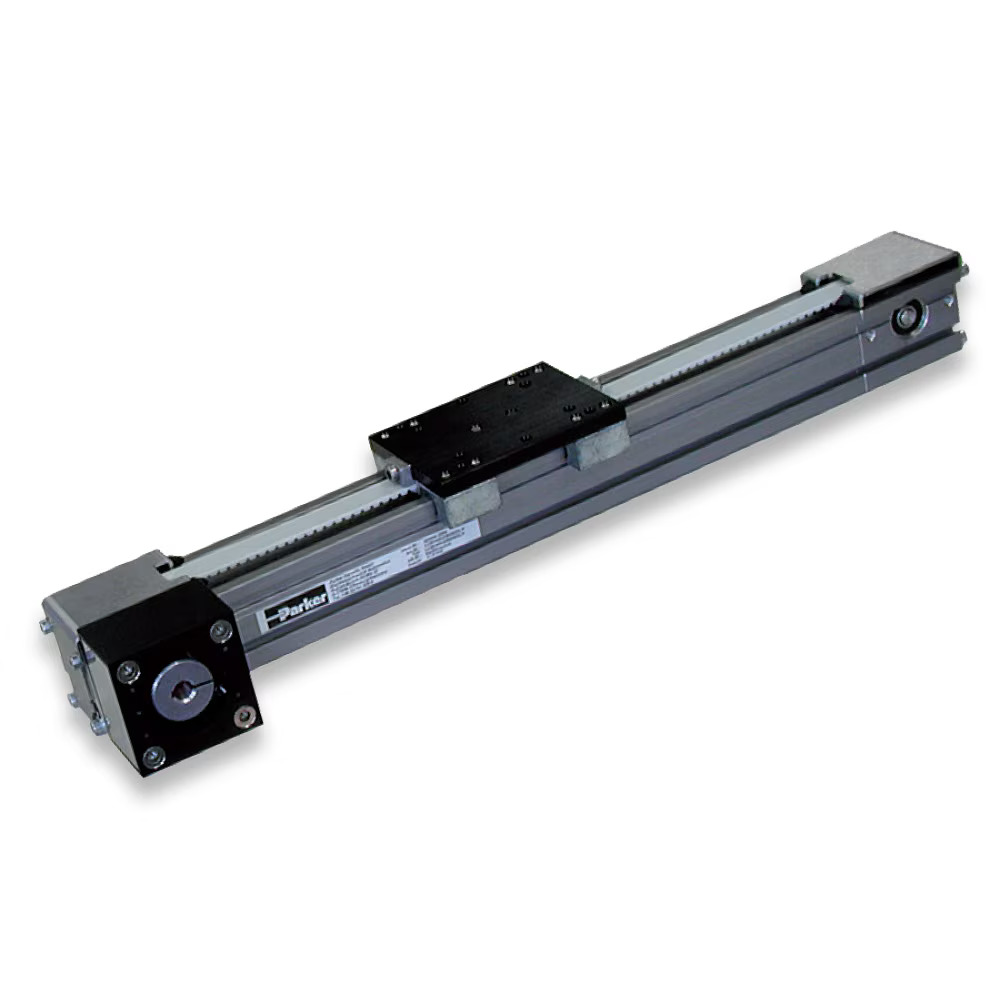

LCB Series - LCB040 Belt Driven, Slider Bearing Rodless Linear Actuator

LCB is a compact, robust linear actuator with an external sliding guidance system and integrated toothed belt drive - the construction is simple, economic and robust, making the LCB a cost effective alternative to traditional toothed belt actuators. The simple, cost effective design of the LCB is also well suited for replacing pneumatic actuators in applications requiring a higher level of performance and control. Combined with Parker motors and controls, the LCB offers a fully programmable, high performance solution at a great value. LCB040 Belt Driven Linear Actuator - Features: • Profile Width : 40 mm • Maximum Load Capacity : 1250 N • Thrust Forces : up to 160 N • Travel Lengths : up to 2 m • Speeds : up to 5 m/s • Accelerations : up to 20 m/s² • Typical Repeatability : ± 0.2 mm • External Sliding Guide - clean and dry, no need for lubrication that can attract dust particles • Toothed Belt and Pulley Drive Mechanism - high service life and low noise operation • Low purchase, installation and operating costs Typical Application Areas: • Pick-&-Place Applications • Packaging, Labeling and Wrapping Systems • Sensor and Format Adjustment (e.g. back-stop) • Pusher-, Picker- and Gripper Applications • Positioning • Feeding • Cutting
