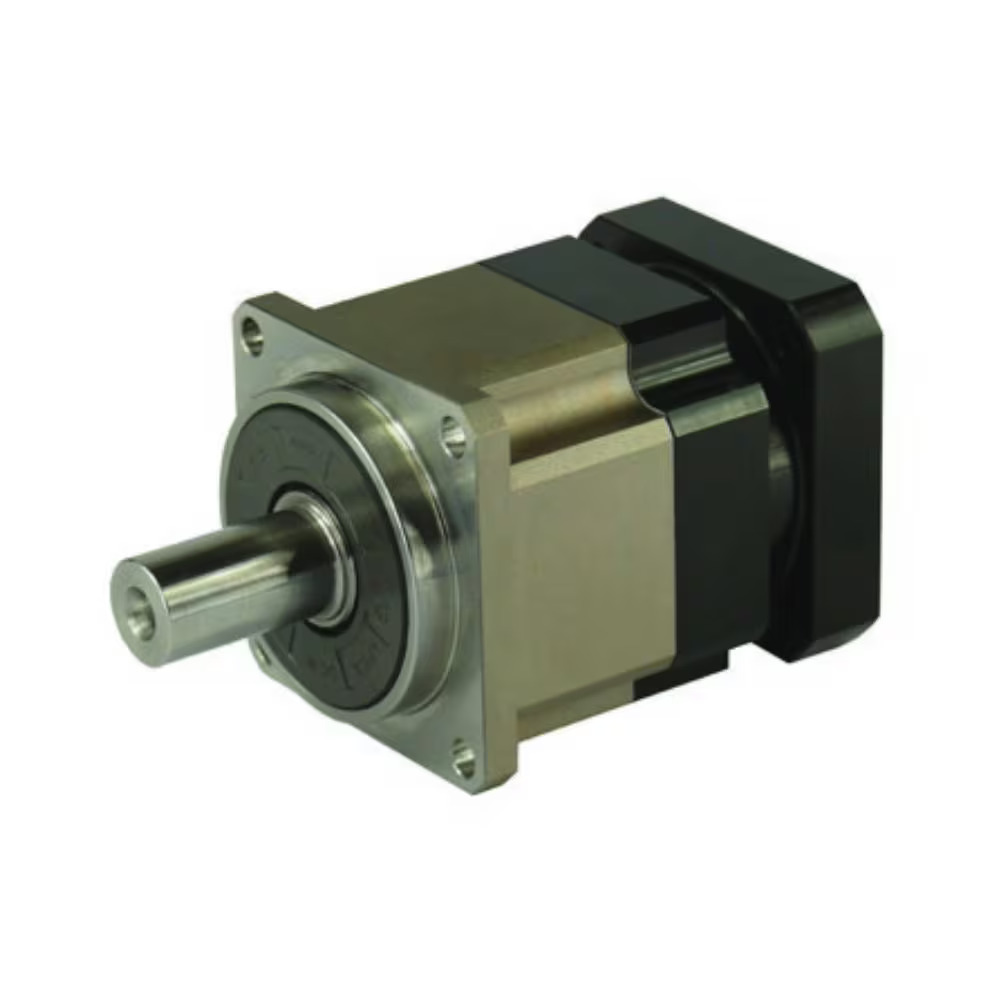

High Precision Inline Planetary Gearboxes for ATEX Applications - GXA Series
The GXA gearbox series has to be associated with the powerful Parker ATEX servo motor ranges for use in hazardous areas. The precision helical gearing design offers smooth and quiet operation for the most demanding high performance applications. The solid uncaged needle roller bearings provides maximum contact points to increase stiffness and generates high output torque. In addition the unique motor adapter and bushing module system design allows to obtain a compact structure and a quick and easy mounting of any ATEX certified Parker motor. Markets: • Printing & Marking Equipment • Packaging Machinery • Coatings / Ink / Paint • Industrial Chemical Processing • Pharmaceutical Industries • Plastic Processing • Oil & Gas • Power Generation Features/Benefits: • Conformance: 2014/34/EU Directive • Classification: II 2 GD c T6 • Frame Sizes: 60 - 220mm • Ratio Options: 3:1 - 100:1 • Backlash: up to ≤ 3 arc-minutes • Efficiency: up to ≥ 97% • High Input Speeds: up to 10000 RPM • ATEX certification / Combine with the powerful Parker ATEX servo motor ranges for use in hazardous areas • Easy mounting • Low noise • Compact structure • Helical Gear Design Applications: • Printing machinery • Paint spray equipments • Plastics machinery • Chemical, petro-chemical • Waste processing plants
| Produktklassifisering | Elektromekanik |
|---|---|
| Produktkategori | Gearbokse |
Loading variant data
Relaterede produkter
The PTN-series planetary gearheads are suitable for use in combination with Parker LCB linear actuator series.
The high precision PS-series inline helical planetary gearheads are available in 60-142mm frame sizes and offer high torques, high radial loads, very low backlash, high input speeds and a small package size.
The standard precision PE-series inline planetary gearheads are available in 40-155mm frame sizes and offer high torque, low backlash, high input speeds and a small package size with an excellent price/performance ratio.
