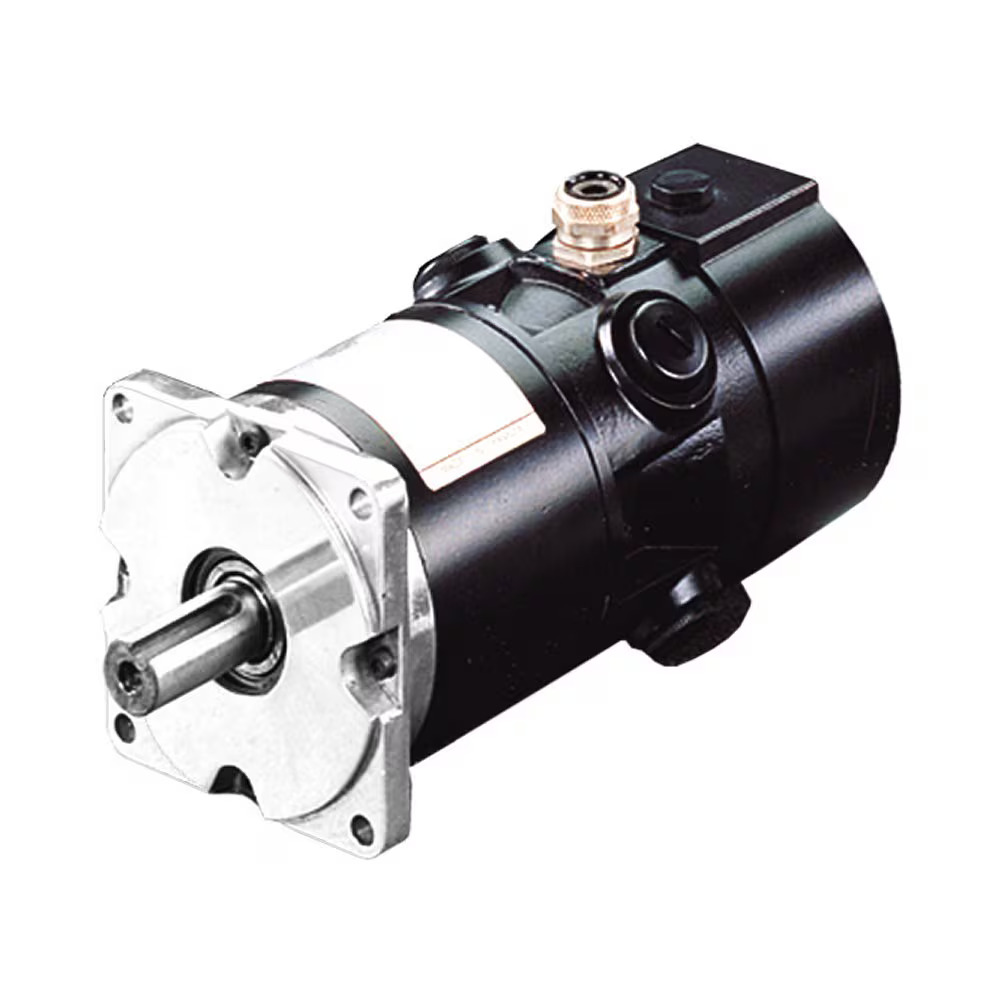

High Performance DC Servo Motor - RS Series

Using high energy magnets, RS-series DC motors combined with RTS drives are particularly suitable for applications which require a very compact solution or a high dynamic level. Applications: • Factory Automation • Life Science Diagnostic • Textile Machines • Radiation Hardend Technical Overview: • Motor Technology : brushed DC servo motor with rare earth magnets • Frame Sizes : 39mm | 52mm | 68mm | 83mm | 97mm | 120mm • Torque Range : 0.05 ... 13 Nm • Speed Range : 2000 ... 3000 min-1 • Voltage Supply : 20.7 ... 105VDC • Number of Poles : 4 • Protection Level : IP40 (RS1-RS4) | IP54 (RS5-RS6) • Feedback Sensors : Tacho | Encoder | Resolver • Marking : CE (except RS6) Features: • Shaft     - RS1 to RS4: Smooth full shaft     - RS5 and RS6: Full keyed shaft • 2nd Shaft End     - RS1 to RS3: possibility to mount standard tacho or encoder     - RS5 and RS6: possibility to mount standard tacho, adaptation for encoder mounting in option • Output Cables - 1 m without connector • Options     - brake (RS2 to RS6)  /  - tachometer     - adaptation 2nd shaft end for encoder mounting (RS5 and RS6) Advantages: • High performance characteristics • Excellent low-speed functioning • High compactness • Very long service life • Rare earth magnets • Tacho, encoder resolver and brake in option
