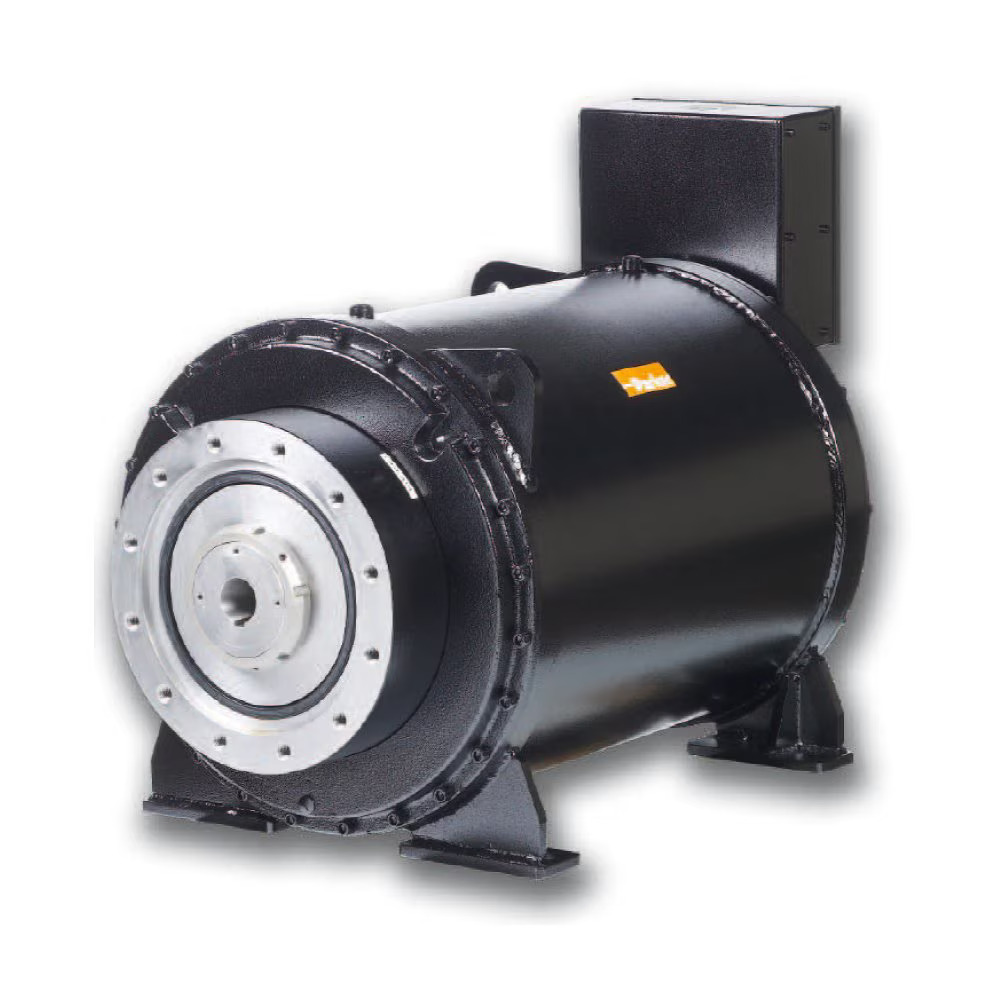

Direct-Drive Torque Motors - TMW/TMA Series - Motor Speed 50...100 min-1
Parker TMW Torque motors are innovative direct drive solutions designed for industrial applications requiring high torque at low speed without any additional mechanical transmission system. They advantageously replace traditional gearbox based systems and their usage results in more compact, more efficient, quieter and virtually maintenance free drive systems. Markets: • Molding • Plastic Processing • Converting • Rubber & Tire Processing • Material Forming Features/Benefits: • Permanent magnet synchronous motor • High torque at low speed • High torque density • Silent operation • Customized mechanical Interface • Integrated thrust bearing (option) Applications: • Extruders • Injection Molding Machines • Winders • Mixers • Crushers • Presses Technical Specifications: • Connections : - terminal box for power cable, PTC probes and KTY sensors - connector for encoder signals • Insulation of the stator winding : Class F according to EN 60034-1 • Thermal Protection : 2 PTC probes and 1 KTY sensor • Vibration Severity : Grade N Variants and Options: • Shaft End - solid or hollow shaft with key or keyway, spline profile DIN 5480 and DIN 5463 - customized interfaces available on request • Bearings - ball bearings / - roller bearings (option) • Feedback Systems - absolute single turn Endat encoder / - resolver • Terminal Box Orientation - at the rear on the top - at the rear on the left or right side • Extruder Specific Features - itegrated thrust bearing - screw extraction and cooling mechanisms - customized mechanical interface
| Produktklassifisering | Elektromekanik |
|---|---|
| Produktkategori | Pumper og Motorer |
| Produktgruppe | Torque Motors |
Loading variant data
Relaterede produkter
TM-series direct-drive torque motors offer high torques at low speeds and can replace traditional gearbox based systems in many applications. Available with 400/480-600VAC windings, torques up to 22000Nm, power ratings to 394kW and speeds to 510 min-1
TM-series direct-drive torque motors offer high torques at low speeds and can replace traditional gearbox based systems in many applications. Available with 400/480-600VAC windings, torques up to 22000Nm, power ratings to 394kW and speeds to 510 min-1
TM-series direct-drive torque motors offer high torques at low speeds and can replace traditional gearbox based systems in many applications. Available with 400/480-600VAC windings, torques up to 22000Nm, power ratings to 394kW and speeds to 510 min-1
TM-series direct-drive torque motors offer high torques at low speeds and can replace traditional gearbox based systems in many applications. Available with 400/480-600VAC windings, torques up to 22000Nm, power ratings to 394kW and speeds to 510 min-1
TK-series frameless direct-drive torque motor kits offer high torques at low speed and come as a separate rotor and stator, permitting direct system integration. With 400VAC windings, torques up to 21700Nm, power ratings to 207kW and speeds to 2500 min-1
Note: This product is no longer available - please contact us for further assistance.
